Part No 109R0812H401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management

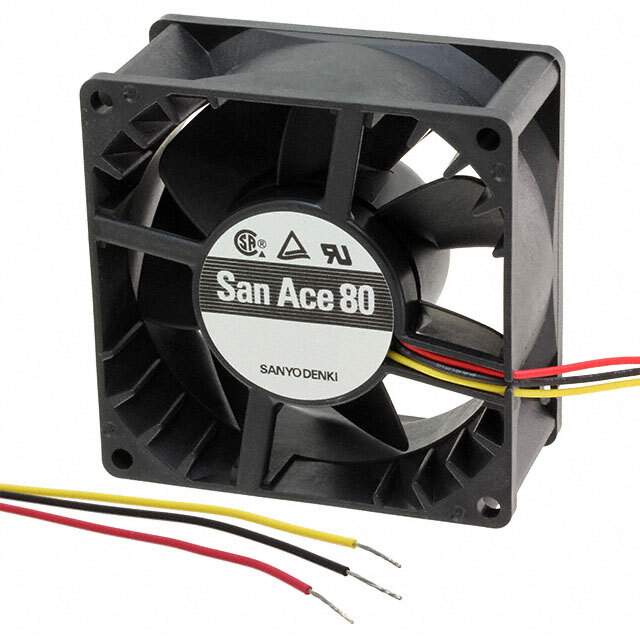

Description FAN AXIAL 80X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 36.4 CFM (1.02m³/min) 3 Wire Leads
Datasheet
109R0812H401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 36.4 CFM (1.02m³/min)
Static Pressure 0.142 in H2O (35.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 29.0dB(A)
Power (Watts) 1.56 W
RPM 2900 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.243 lb (110.22 g)
Current Rating (Amps) 0.130A
Voltage Range 6 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 60000 Hrs @ 60°C
Base Product Number 109R0812
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1349801-109R0812H401
Ultra Librarian 3D Model Ultra Librarian 109R0812H401 CAD Model

Description

The San Ace 80 series of DC brushless fans (BLDC) from Sanyo Denki America Inc. is a reliable cooling solution for electronic equipment.

  • Voltage Rating: 12VDC
  • Power Consumption: 1.56Watts
  • Noise Level: 29.0dB(A)
  • Size: 80mm L x 80mm H
  • Weight: 0.243 lb (110.22 g)
  • Speed: 2900 RPM
  • Air Flow: 36.4 CFM (1.02m³/min)
  • Locked Rotor Protection: Yes
  • Speed Sensor (Tach): Yes
  • Frame and Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
