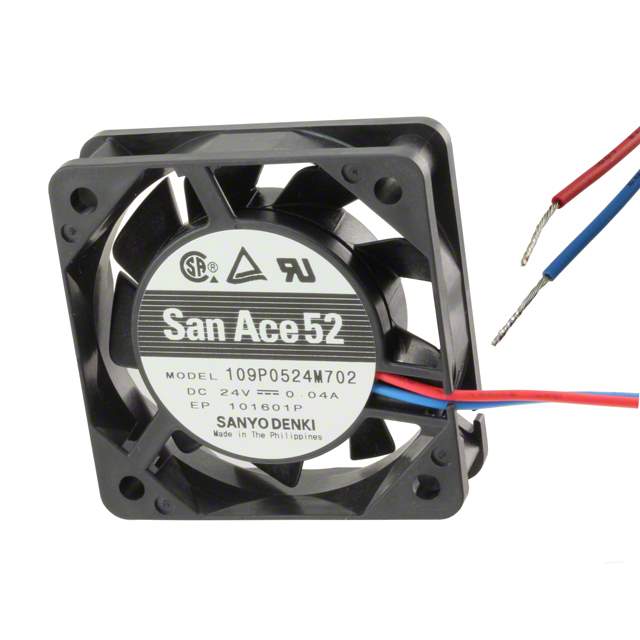

Part No 109P0524H702
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 52X15MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 52mm L x 52mm H Ball 9.0 CFM (0.252m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 52
Package Box
Product Status Obsolete
Voltage - Rated 24VDC
Size / Dimension Square - 52mm L x 52mm H
Width 15.00mm
Air Flow 9.0 CFM (0.252m³/min)
Static Pressure 0.128 in H2O (31.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 27.0dB(A)
Power (Watts) 1.2 W
RPM 4600 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.122 lb (55.34 g)
Current Rating (Amps) 0.050A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 60000 Hrs @ 60°C
Base Product Number 109P0524
Standard Package 140
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1348503-109P0524H702
Ultra Librarian 3D Model Ultra Librarian 109P0524H702 CAD Model

Description

The San Ace 52 is a DC brushless fan that is designed for efficient thermal management. It has a voltage rating of 24VDC and a power consumption of 1.2W.

  • Voltage Rating: 24VDC
  • Power Consumption: 1.2W
  • Features: Locked Rotor Protection
  • Lifetime: 60000 hours @ 60 degrees Celsius
  • Size: 52mm L x 52mm H
  • Weight: 0.122 lb (55.34 g)
  • Voltage Range: 14 ~ 27.6VDC
  • Air Flow: 9.0 CFM (0.252m³/min)
  • Speed: 4600 RPM
  • Noise Level: 27.0dB(A)
  • Material: Plastic Frame and Blade
  • Operating Temperature: -4 ~ 158°F (-20 ~ 70°C)
