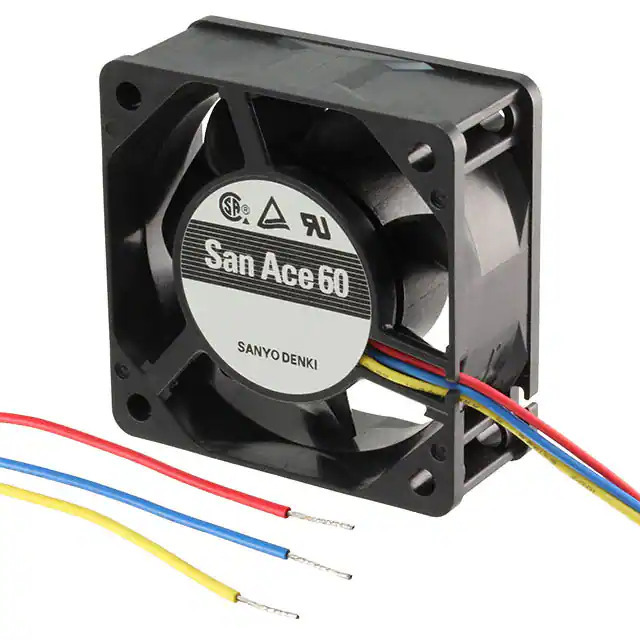

9A0624G401 Sanyo Denki America Inc.
Same model may have multiple batches, images only for reference.

9A0624G401

Part No 9A0624G401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25MM 24VDC WIRE
Datasheet
9A0624G401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Cooler 60
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 27.6 CFM (0.773m³/min)
Static Pressure 0.351 in H2O (87.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 39.0dB(A)
Power (Watts) 3.12 W
RPM 5600 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating -4 ~ 140°F (-20 ~ 60°C)
Approval Agency CSA, TUV, UL
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.130A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 60°C
Base Product Number 9A0624
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368457-9A0624G401
Ultra Librarian 3D Model Ultra Librarian 9A0624G401 CAD Model

Description

The San Cooler 60 is a high-quality DC brushless fan designed for efficient thermal management in electronic devices. Manufactured by Sanyo Denki America Inc.

  • Series: San Cooler
  • Voltage Rating: 24VDC
  • Current Rating: 0.130A
  • Power Output: 3.12W
  • Noise Level: 39.0dB(A)
  • Maximum Rotational Speed: 5600 RPM
  • Shape: Square
  • Dimensions: 60mm length and 60mm height
  • Features: Locked rotor protection and a speed sensor (tach)
  • Lifetime: 30000 hours @ a temperature of 60°C
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Termination: 3-wire leads
  • Approvals: CSA, TUV, and UL
  • Air Flow: 27.6 CFM
  • Static Pressure: 0.351 in H2O
  • Weight: 0.176 lb (80.00 g)
  • Voltage Range: 12 to 27.6VDC
  • Suitable for: Effective cooling for your electronic components
