Part No 109P0424H3013
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans

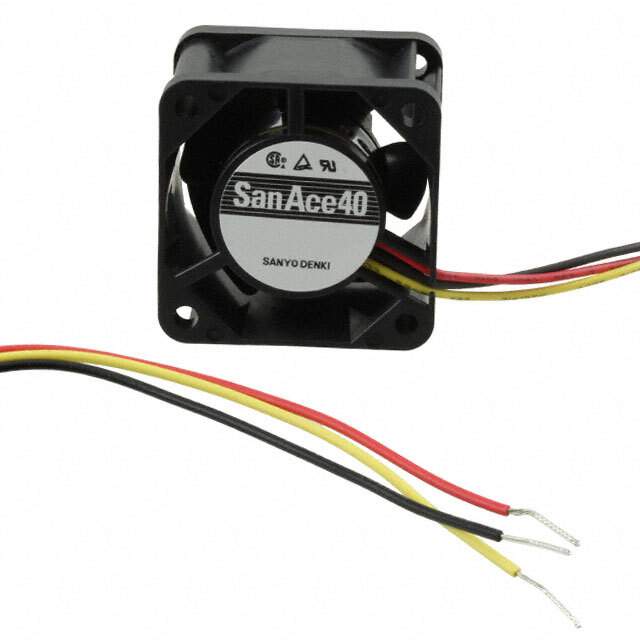

Description FAN 40X28MM 24VDC TACH
Datasheet
109P0424H3013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sanyo Denki America Inc.
Series San Ace 40
Voltage Rating DC 24VDC
Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 11.3 CFM (0.320m3/min)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach)
Noise 37 dB(A)
Power (Watts) 2.28W
RPM 8700 RPM
Termination 3 Wire Leads
Operating Temperature Range -4 ~ 158°F (-20 ~ 70°C)
Approvals CSA, TUV, UR
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 60000 Hrs @ 60°C
Win Source Part Number 760149-109P0424H3013
Popularity Medium
Supply and Demand Status Limited
Family Name 109P
Introduction Date October 06, 2008
ECCN 4A994
Country of Origin Philippines
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 109P0424H3013 CAD Model

Description

The Sanyo Denki America Inc. 109P0424H3013 is a part of the San Ace 40 series and is a fan used for thermal management in electronic devices.

  • Series: San Ace 40
  • Type: Fan
  • Voltage Range: 12 ~ 27.6VDC
  • Operating Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CSA, TUV, UR
  • Noise Level: 37 dB(A)
  • Supply and Demand Status: Limited
