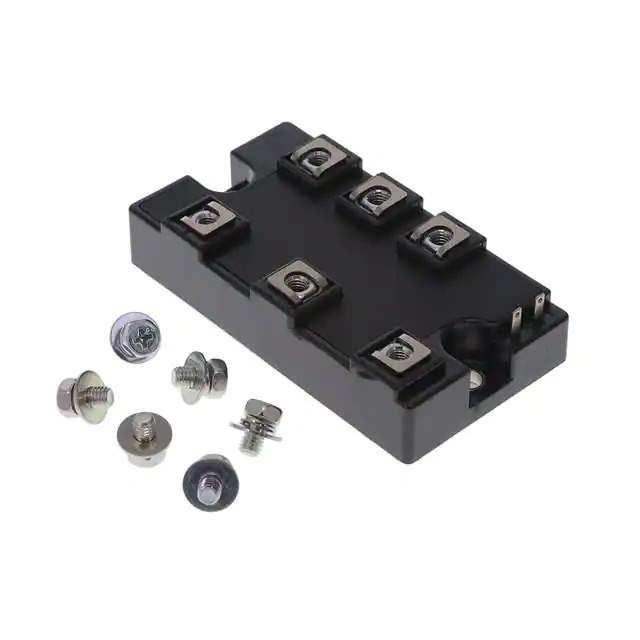

DFA100BA160 Real Image
Same model may have multiple batches, images only for reference.

DFA100BA160

Part No DFA100BA160
Manufacturer SanRex Corporation
Catalog TVS - Thyristors
Description DIODE MODULE 1600V 100A
Datasheet
DFA100BA160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr SanRex Corporation
Package Tray
Product Status Active
Structure Bridge, 3-Phase - SCRs/Diodes
Number of SCRs, Diodes 1 SCR, 6 Diodes
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 100 A
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 70 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1186A, 1300A
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584515-DFA100BA160
Ultra Librarian 3D Model Ultra Librarian DFA100BA160 CAD Model

Description

The 584515-DFA100BA160 is a thyristor module used in discrete semiconductor products.

  • Category: Thyristors - SCRs (silicon-controlled rectifiers) - Modules
  • Voltage Rating (Off-State): 1.6 kV
  • Gate Trigger Voltage: 3 V
  • Maximum Gate Trigger Current: 70 mA
  • Maximum On-State Current: 100 A
  • SCR/Diode Configuration: 1 SCR + 6 Diodes (Bridge)
  • Mounting: Chassis
  • Package: Tray
  • Operating Temperature Range: -40°C to 150°C
  • ECCN Code: EAR99
  • HTSUS Code: 8541.10.0080
