Same model may have multiple batches, images only for reference.

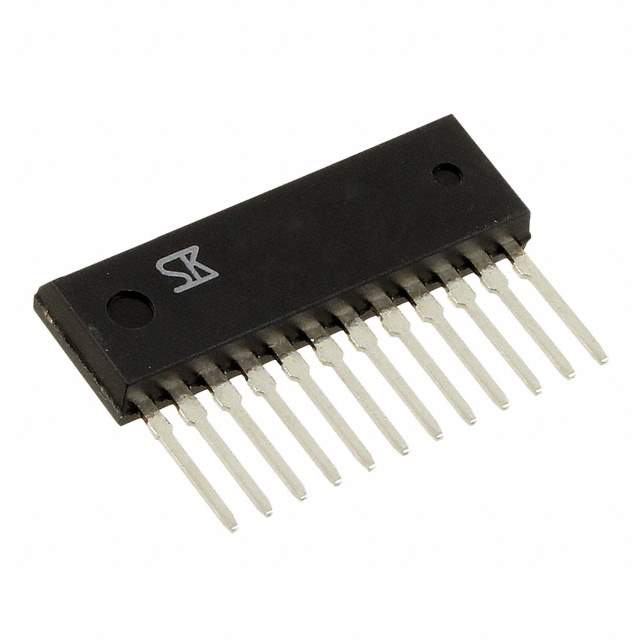

SMA4033 Real Image
Same model may have multiple batches, images only for reference.

SMA4033

Part No SMA4033
Manufacturer Sanken
Catalog Transistors (BJT) - Arrays
Description TRANS 4NPN DARL 100V 2A 12-SIP
Datasheet
SMA4033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Transistor Polarity 4 NPN Darlington (Quad)
Maximum Current Collector 2A
VCEO Maximum Collector-Emitter Breakdown Voltage 100V
Max Vce (sat) 1.5V @ 2mA, 1A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 2000 @ 1A, 4V
Maximum Power Dissipation 4W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 046980-SMA4033
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SMA4033 CAD Model

Description

The supply and demand status is sufficient. It is a manufacturer part number 046980.

  • Transistor Polarity: 4 NPN Darlington (Quad)
  • Maximum Current Collector: 2A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 100V
  • Maximum Power Dissipation: 4W
  • Collector Cut-off Current (Max): 10μA (ICBO)
  • Mounting: Through-Hole
  • Case/Package: 12-SIP
