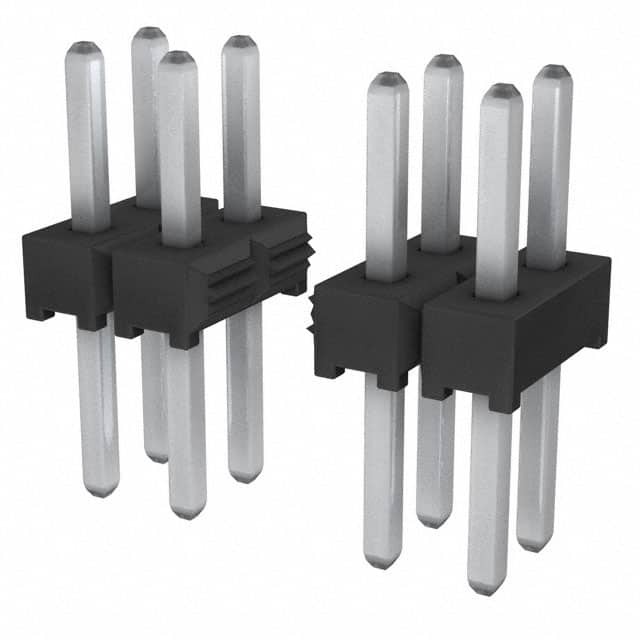

Same model may have multiple batches, images only for reference.

TMM-106-01-T-D

Name: TMM-106-01-T-D
Brand: Samtec Inc.
SKU: 900401
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TMM-106-01-T-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 2MM
Datasheet	TMM-106-01-T-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Base Product Number	TMM-106
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	900401-TMM-106-01-T-D
Ultra Librarian 3D Model	Ultra Librarian TMM-106-01-T-D CAD Model

Description

The TMM-106-01-T-D is a 12-position male pin header connector from Samtec Inc.

Series: TMM series
Positions: 12
Fastening Type: Push-pull
Mounting: Through-hole mounting
Pitch: 0.079" (2.00mm)
Contact Material: Phosphor bronze
Contact Finish: Tin
Insulation Material: Black liquid crystal polymer (LCP)
Height: 0.059" (1.50mm)
Temperature Range: -55°C to 105°C
Package: Bulk
Quantity: 1 pcs
Applications: Board to board or cable
Current Rating: 3.2A per contact
