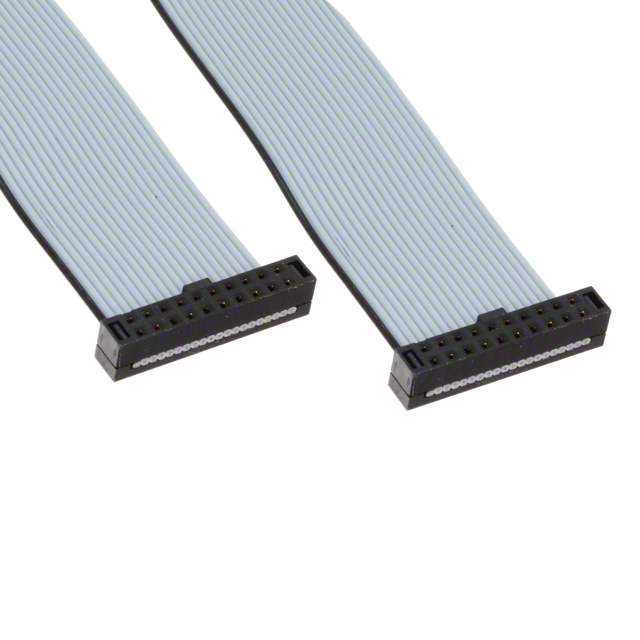

TCSD-10-D-04.00-01-N Real Image
Same model may have multiple batches, images only for reference.

TCSD-10-D-04.00-01-N

Part No TCSD-10-D-04.00-01-N
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description Cable Assembly 0.101m 28AWG 2mm 20 to 20 POS IDC Connector to IDC Connector F-F TIGER EYE™ Bulk / CABLE ASSEM 2MM 20POS F-F 4"
Datasheet
TCSD-10-D-04.00-01-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Samtec Inc.
Series Tiger Eye TCSD
Connector Type Socket to Socket
Number of Positions 20
Number of Rows 2
Pitch - Connector 0.079" (2.00mm)
Pitch - Cable 0.039" (1.00mm)
Length 0.333' (101.60mm, 4.00")
Color Gray, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 785156-TCSD-10-D-04.00-01-N
Popularity Medium
Supply and Demand Status Limited
Family Name TCSD
Introduction Date December 16, 2002
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TCSD-10-D-04.00-01-N CAD Model

Description

The TCSD-10-D-04.00-01-N is a cable assembly product of from Samtec Inc.

  • Series: Tiger Eye TCSD
  • Positions: 20
  • Ribbon Color: Gray
  • Connector Type: Socket to Socket
  • Cable Termination: IDC
  • Pitch: 0.039" (1.00mm)
  • Connector Pitch: 0.079" (2.00mm)
  • Shielding: Unshielded
  • Contact Finish Thickness: 30μin (0.76μm)
  • Supply and Demand Status: Limited
  • Applications: Data Communication, Industrial Automation, Medical Equipment
