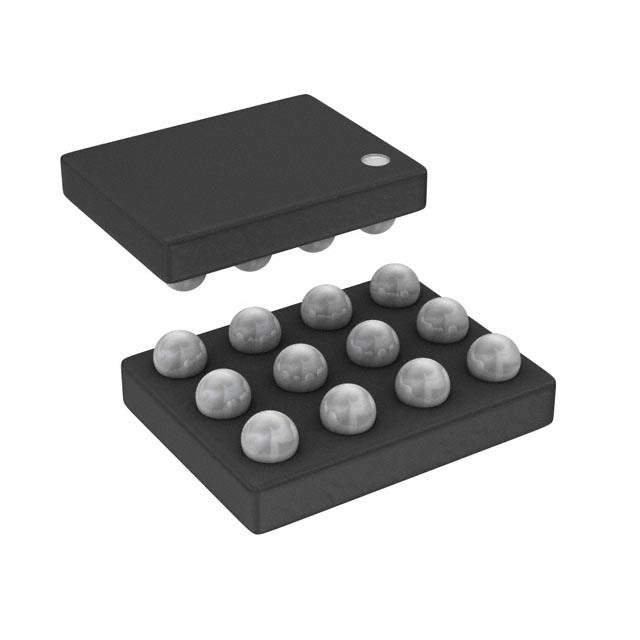

Product Overview: AD7889-1ACBZ-RL7

The AD7889-1ACBZ-RL7 is a high-performance, dual-channel 12-bit Analog-to-Digital Converter (ADC) produced by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This ADC is designed to offer precision data conversion from analog signals to digital form, making it an essential component for a wide range of applications that require accurate and reliable data acquisition.

Key Features

• Resolution: 12-bit ADC with two channels, providing high accuracy and resolution for precise measurements.
• Sampling Rate: Capable of a maximum sampling rate of 125 kSPS (kilo-samples per second), allowing for the capture of rapidly changing signals.
• Interface: Features a Serial Peripheral Interface (SPI) that ensures easy integration with most microcontrollers and digital systems.
• Power Supply: Operates with a single 2.7 V to 5.25 V power supply, making it versatile for various power environments.
• Power Consumption: Low power consumption with an automatic power-down feature, making it ideal for battery-powered and portable devices.
• Package: Available in a compact, 10-lead MSOP (Mini Small Outline Package) that is suitable for space-constrained applications.
• Temperature Range: Specified performance over an industrial temperature range of -40°C to +125°C.

Applications

The AD7889-1ACBZ-RL7 is suitable for various applications, including:

• Battery-powered devices
• Data acquisition systems
• Medical instruments
• Industrial control systems
• Portable instrumentation

Quality and Reliability

Analog Devices Inc. is committed to providing high-quality products that meet stringent industry standards. The AD7889-1ACBZ-RL7 is manufactured with the reliability and performance that customers have come to expect from Analog Devices, ensuring that your applications run smoothly and efficiently.

Ordering Information

The product is available in a tape and reel format under the part number AD7889-1ACBZ-RL7, facilitating automated assembly processes for high-volume production requirements.
