Same model may have multiple batches, images only for reference.

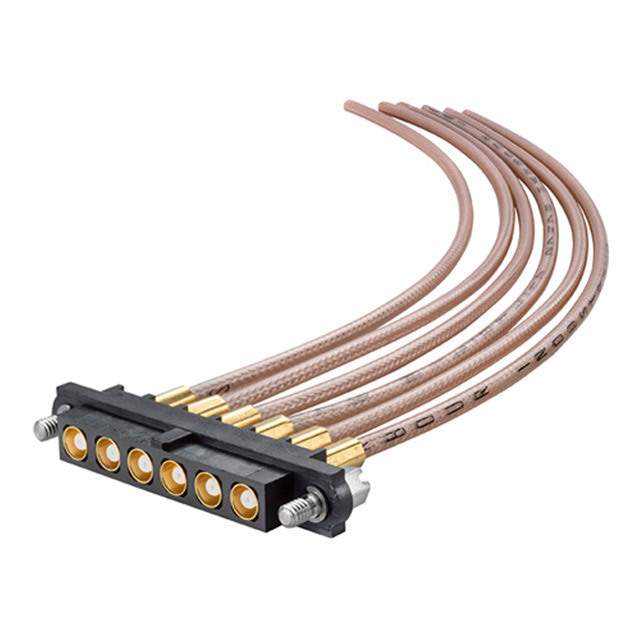

M80-FC305F1-06-0300L Real Image
Same model may have multiple batches, images only for reference.

M80-FC305F1-06-0300L

Part No M80-FC305F1-06-0300L
Manufacturer Harwin Inc.
Catalog Rectangular Cable Assemblies
Description CBL ASS RG178 FMALE 300MM 6POS / 6 Position Cable Assembly Rectangular Socket to Individual Wire Leads 0.984' (300.00mm, 11.81")
Datasheet
M80-FC305F1-06-0300L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies - Rectangular Cable Assemblies
Mfr Harwin Inc.
Series Datamate Coax
Package Bag
Connector Type Socket to Individual Wire Leads
Number of Positions 6
Number of Rows 1
Pitch - Connector 0.157" (4.00mm)
Length 0.984' (300.00mm, 11.81")
Features Polarizing Key, Screw Lock
Color Tan, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Base Product Number M80-FC3
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1351361-M80-FC305F1-06-0300L
Ultra Librarian 3D Model Ultra Librarian M80-FC305F1-06-0300L CAD Model

Description

The Harwin Inc. M80-FC305F1-06-0300L is a coaxial cable assembly that is part of the Datamate Coax series.

  • Number of Positions: 6
  • Pitch: 0.157" (4.00mm)
  • Features: Polarizing Key, Screw Lock
  • Package: Bag
  • Standard Package: 10
