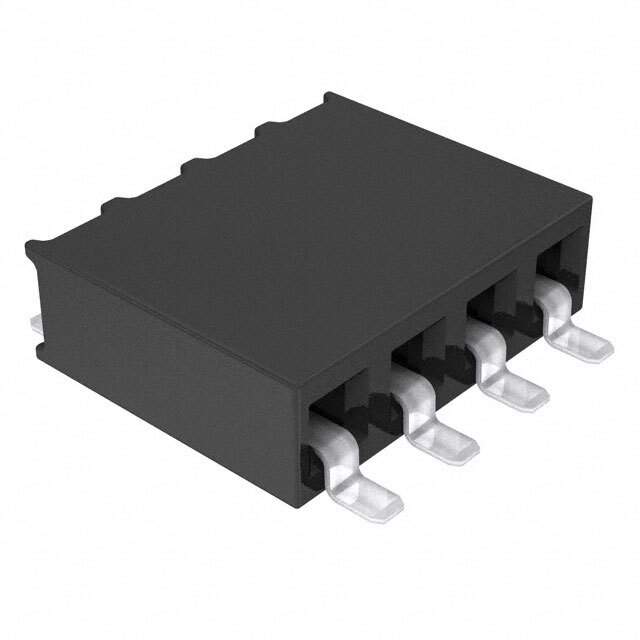

SSM-104-S-SH Real Image
Same model may have multiple batches, images only for reference.

SSM-104-S-SH

Part No SSM-104-S-SH
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-104-S-SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-104
Other Names SAM1151-04
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291661-SSM-104-S-SH
Ultra Librarian 3D Model Ultra Librarian SSM-104-S-SH CAD Model

Description

The Samtec Inc. SSM-104-S-SH is a 4-position female socket receptacle connector.

  • Connector Style: Board-to-board or cable style connector
  • Pitch: 0.100" (2.54mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold (mating contacts), Tin (post contacts)
  • Mounting Type: Surface mount and right angle
  • Voltage Rating: 405VAC and 572VDC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: Not available
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 5.2A per contact
