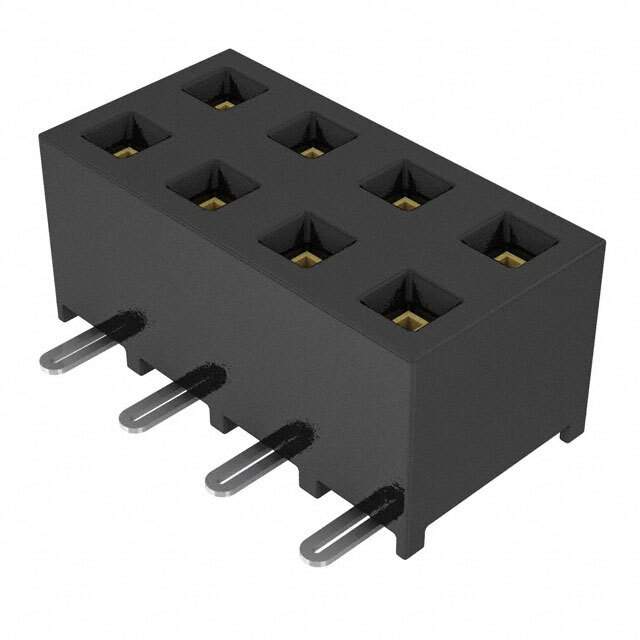

SMM-104-01-S-D

Part No SMM-104-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMM-104-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SMM
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SMM-104
Other Names SMM-104-01-S-D,SAM15264
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285380-SMM-104-01-S-D
Ultra Librarian 3D Model Ultra Librarian SMM-104-01-S-D CAD Model

Description

The Tiger Eye™ SMM series female socket receptacle connector is a great choice for board-to-board or cable connections.

  • Connector Series: Tiger Eye™ SMM
  • Style: Board-to-Board or Cable
  • Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Beryllium Copper
  • Current Rating: 3.2A per contact
  • Voltage Rating: 350VAC
  • Fastening Type: Push-Pull
  • Mounting: Through Hole
  • Insulation Material: Black Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
