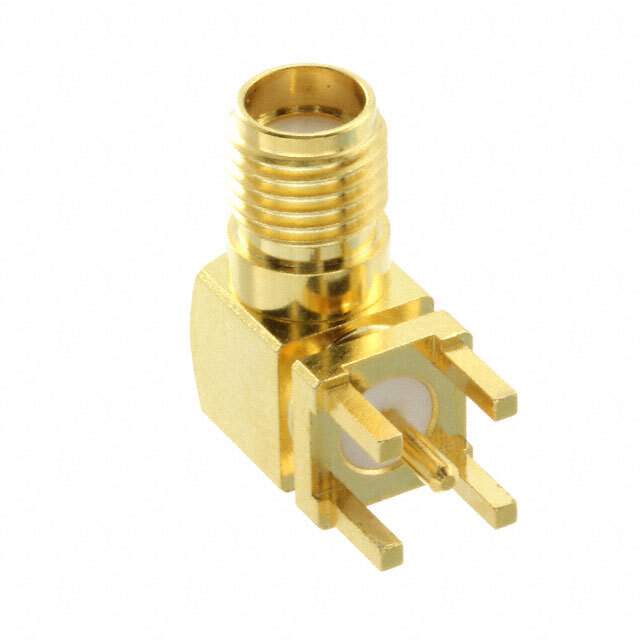

SMA-J-P-H-RA-TH1 Real Image
Same model may have multiple batches, images only for reference.

SMA-J-P-H-RA-TH1

Part No SMA-J-P-H-RA-TH1
Manufacturer Samtec Inc.
Catalog Coaxial Connectors (RF)
Description CONN SMA JACK R/A 50 OHM PCB
Datasheet
SMA-J-P-H-RA-TH1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features SMA Connector Jack, Female Socket 50Ohm Through Hole, Right Angle Solder
Manufacturer Samtec Inc.
Package Tray
Operating Temperature Range -65°C ~ 125°C
Mounting Through Hole, Right Angle
Family Name SMA-J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number SMA-J-P-H-RA-TH1-ND, SAM8856
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934146-SMA-J-P-H-RA-TH1
Ultra Librarian 3D Model Ultra Librarian SMA-J-P-H-RA-TH1 CAD Model

Description

The Samtec Inc. SMA connector jack is a reliable and high-performance connector suitable for various applications.

  • Connector Gender: female socket
  • Impedance: 50-ohm
  • Mounting Type: through-hole, right-angle
  • Package: printed circuit board
  • Supplied On: tray
  • Quantity per Package: 1
  • Operating Temperature: -65°C and 125°C
  • ECCN: EAR99 compliant
  • REACH: affected
