The Tiger Eye™ SFMC series from Samtec Inc. offers a reliable and efficient solution for board-to-board or cable connections.

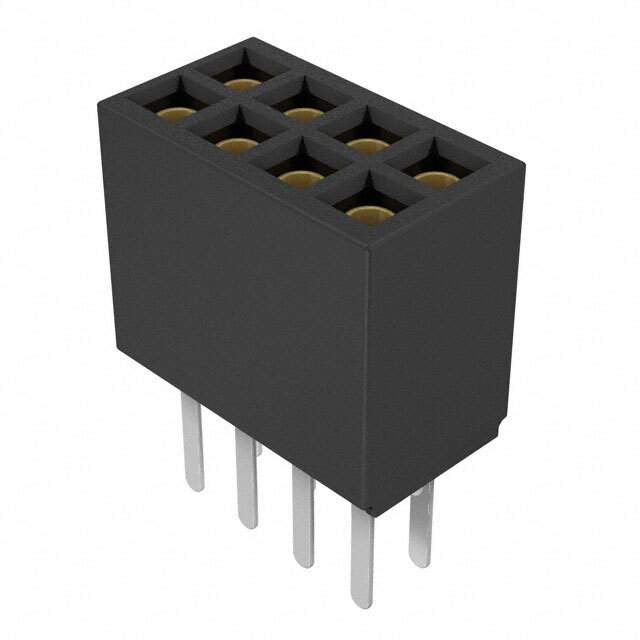

• Connector Type: SFMC-104-03-S-D receptacle connector
• Rows: 2
• Positions: 8
• Contact Type: female socket
• Positions Loaded: all positions
• Insulation Material: liquid crystal polymer (LCP)
• Contact Shape: square
• Pitch-Mating: 0.050" (1.27mm)
• Operating Temperature Range: -55°C to 125°C
• Contact Finish-Mating: gold
• Contact Finish Thickness (Mating): 30.0µin (0.76µm)
• Contact Finish-Post: tin
• Mounting: through-hole
• Row Spacing-Mating: 0.050" (1.27mm)
• Contact Length-Post: 0.075" (1.91mm)
• Insulation Height: 0.180" (4.57mm)
• Current: 2.9A per contact
