Same model may have multiple batches, images only for reference.

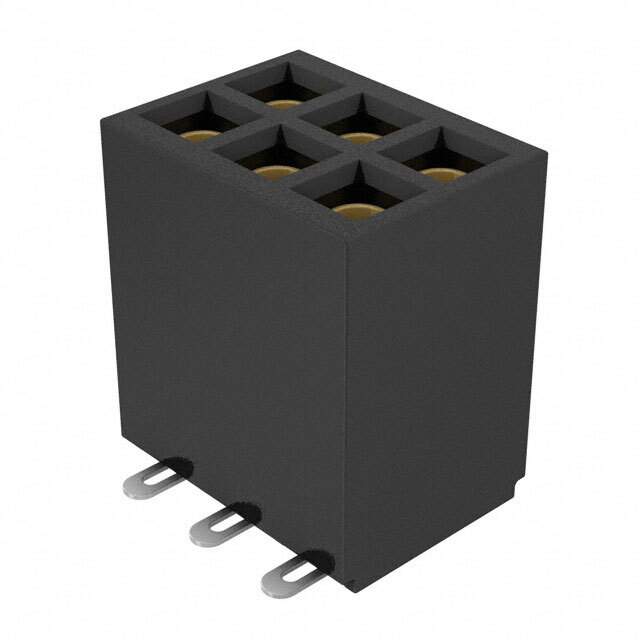

SFMC-103-T2-S-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-103-T2-S-D

Part No SFMC-103-T2-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-103-T2-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SFMC-103
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286730-SFMC-103-T2-S-D
Ultra Librarian 3D Model Ultra Librarian SFMC-103-T2-S-D CAD Model

Description

The Tiger Eye™ SFMC Series Connector from Samtec Inc. is a rectangular connector that is designed to be used in board-to-board or cable applications.

  • Pitch: 0.050" (1.27mm)
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions: 6
  • All Positions Loaded: Yes
  • Rows: 2
  • Current Rating: 2.9A per contact
  • Voltage Rating: Unspecified Volts
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm) for mating and tin for post
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Mounting Technology: Surface-Mount Technology (SMT)
  • Fastening Type: Push-Pull
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-0
