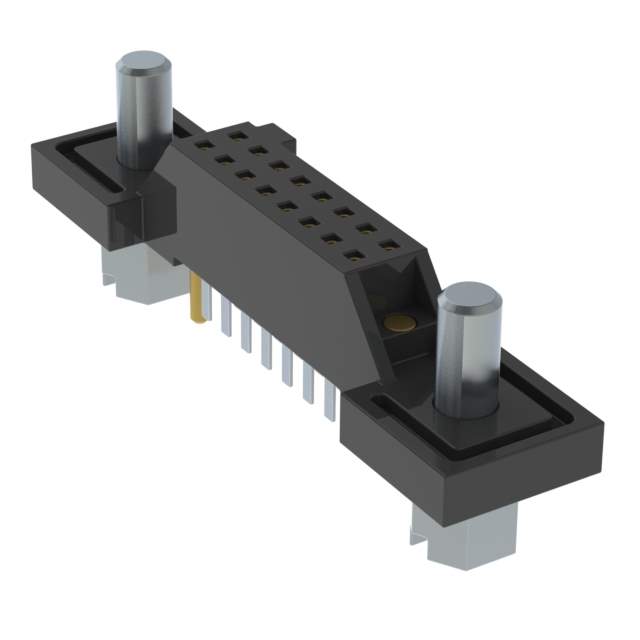

Same model may have multiple batches, images only for reference.

SFM-108-03-L-D-DS

Name: SFM-108-03-L-D-DS
Brand: Samtec Inc.
SKU: 1287612
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFM-108-03-L-D-DS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-108-03-L-D-DS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.075" (1.91mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Features	Mounting Flange, Mounting Hardware
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-108
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287612-SFM-108-03-L-D-DS
Ultra Librarian 3D Model	Ultra Librarian SFM-108-03-L-D-DS CAD Model

Alternative Products

Description

The SFM-108-03-L-D-DS is a rectangular connector from Samtec Inc. with 16 positions and a pitch of 0.050” (1.27mm).

Positions: 16
Pitch: 0.050” (1.27mm)
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Mounting: Through-Hole
Package: Bulk
Current Rating: 3.2A per contact
Operating Temperature Range: -55°C to 125°C
Features: Mounting Flange and Mounting Hardware
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Beryllium Copper
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Series: Tiger Eye™ SFM
