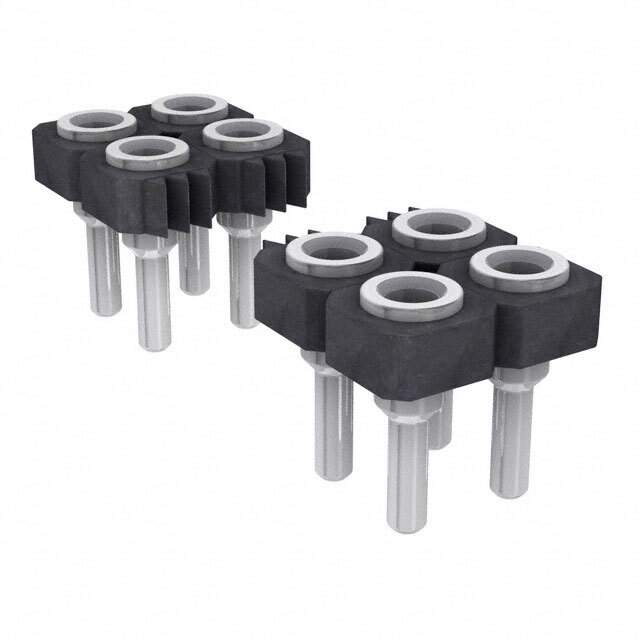

SDL-132-TT-12

Part No SDL-132-TT-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-132-TT-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 64
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 105°C
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-132
Other Names SAM1141-32
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292979-SDL-132-TT-12
Ultra Librarian 3D Model Ultra Librarian SDL-132-TT-12 CAD Model

Description

The SDL series connector from Samtec Inc. is a receptacle type connector with 64 positions and two rows.

  • Contact Type: Female sockets
  • Positions Loaded: All
  • Application: Board-to-board
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Height: 0.095 inches (2.41mm)
  • Mounting Type: Through-hole
  • Temperature Range: -55 to 105 degrees Celsius
