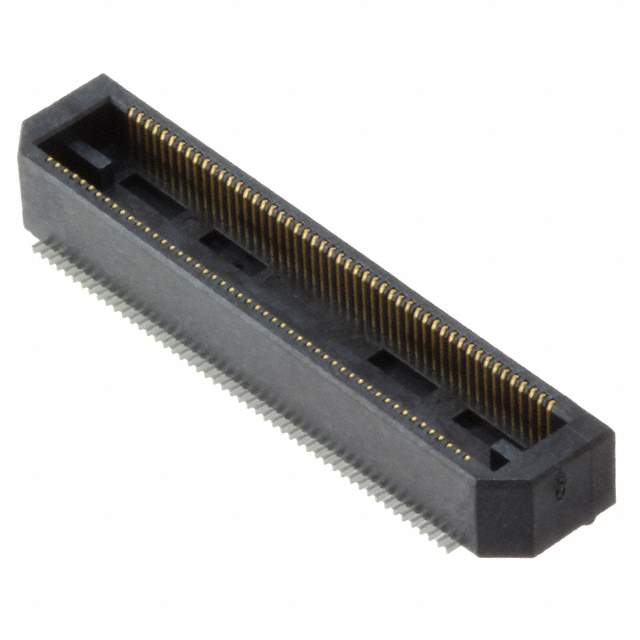

BTH-050-01-L-D-A

Name: BTH-050-01-L-D-A
Brand: Samtec Inc.
SKU: 1341313
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BTH-050-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	BTH-050-01-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BTH
Package	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	100
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.168" (4.27mm)
Base Product Number	BTH-050
Standard Package	60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1341313-BTH-050-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian BTH-050-01-L-D-A CAD Model

Description

The BTH-050-01-L-D-A is a part of the BTH series of rectangular connectors from Samtec Inc. This connector comes in a header, outer shroud contacts package and has a pitch of 0.020" (0.50mm).

Positions: 100
Rows: 2
Mated Stacking Height: 5mm
Height Above Board: 0.168" (4.27mm)
Features: board guide
Contact Finish: gold
Contact Finish Thickness: 10.0µin (0.25µm)
Mounting Type: surface mount
Packaging: tray
Operating Temperature: unlimited
REACH: unaffected
HTSUS: 8536.69.4040
