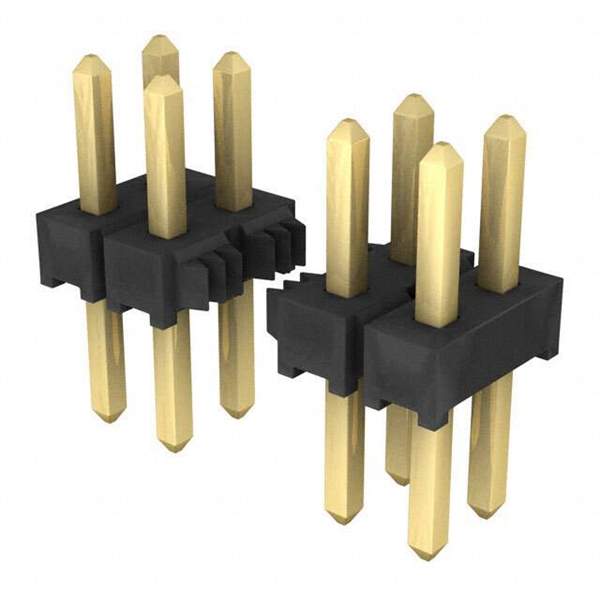

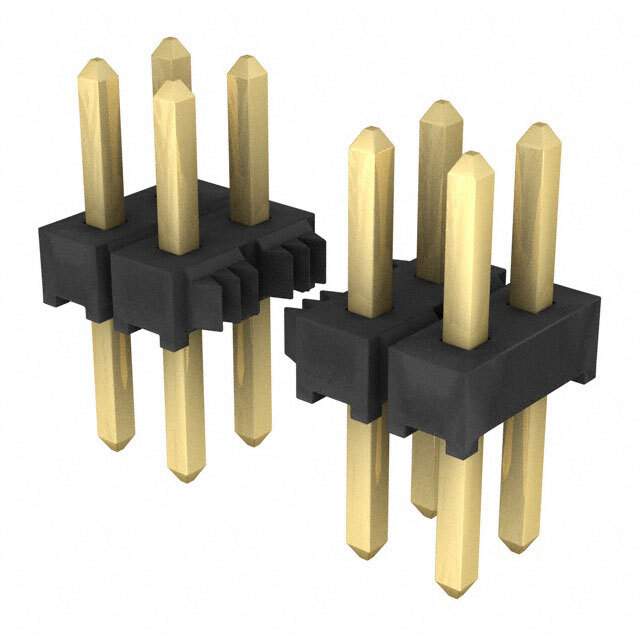

The TMM series male pin header connector is a board-to-board or cable connector with a pitch of 0.079 inches (2.00 mm) and 66 positions.

• Pitch: 0.079 inches (2.00 mm)
• Positions: 66
• Connector Type: Board-to-board or cable
• Contact Material: Phosphor Bronze
• Termination: Solder
• Fastening Type: Push-Pull
• Shrouding: Unshrouded
• Contact Finish (Mating): Gold with a thickness of 20.0 µin (0.51 µm)
• Contact Finish (Post): Gold with a thickness of 3.00 µin (0.076 µm)
• Contact Length (Mating): 0.126 inches (3.20 mm)
• Contact Length (Post): 0.138 inches (3.50 mm)
• Overall Contact Length: 0.323 inches (8.20 mm)
• Insulation Height: 0.059 inches (1.50 mm)
• Contact Shape: Square
• Operating Temperature Range: -55°C to 125°C
