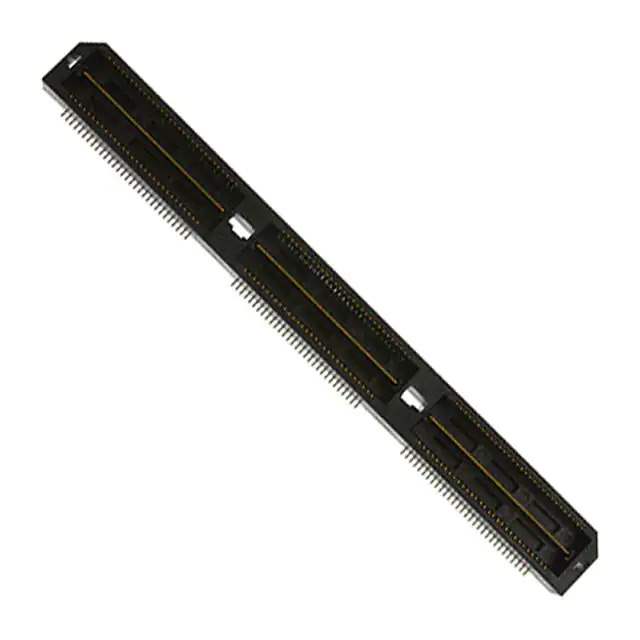

QTH-090-01-L-D-A

Name: QTH-090-01-L-D-A
Brand: Samtec Inc.
SKU: 847122
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	QTH-090-01-L-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 180POS SMD GOLD / 180 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	QTH-090-01-L-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Q Strip® QTH
Package	Tray
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	180
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide, Ground Bus (Plane)
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.160" (4.06mm)
Base Product Number	QTH-090
Standard Package	42 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	847122-QTH-090-01-L-D-A
Ultra Librarian 3D Model	Ultra Librarian QTH-090-01-L-D-A CAD Model

Description

The QTH-090-01-L-D-A is an array connector from Samtec Inc.

Series: Q Strip® QTH
Connector Type: Edge Type, Mezzanine
Pitch: 0.020" (0.50mm)
Number of Positions: 180
Features: Board Guide, Ground Bus (Plane)
Mounting Type: Surface Mount
Packaging: Tray
Height Above Board: 0.160" (4.06mm)
Mated Stacking Heights: 5mm
Contact Finish: Gold
Product Status: Active
