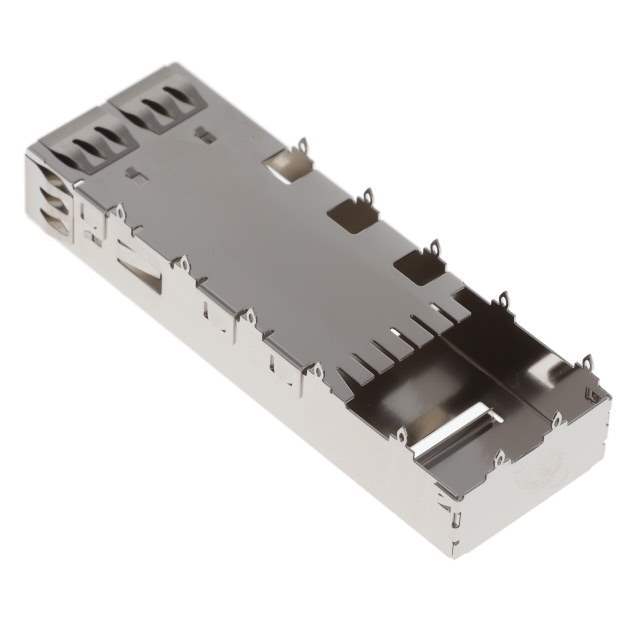

QSFPC-PF-01 Samtec Inc.
Same model may have multiple batches, images only for reference.

QSFPC-PF-01

Part No QSFPC-PF-01
Manufacturer Samtec Inc.
Catalog Pluggable Connectors
Description CONN QSFP CAGE PRESS-FIT R/A
Datasheet
QSFPC-PF-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306820-QSFPC-PF-01
Manufacturer Samtec Inc.
Category Connectors, Interconnects- Pluggable Connectors- Pluggable Connector Assemblies
Packaging  Tube
Part Status Active
Connector Style Cage
Connector Type QSFP
Mounting Type Through Hole, Right Angle
Contact Termination Press-Fit
Features EMI Shielded
Ultra Librarian 3D Model Ultra Librarian QSFPC-PF-01 CAD Model

Description

Position QSFP Cage Connector Press-Fit Through Hole, Right Angle
