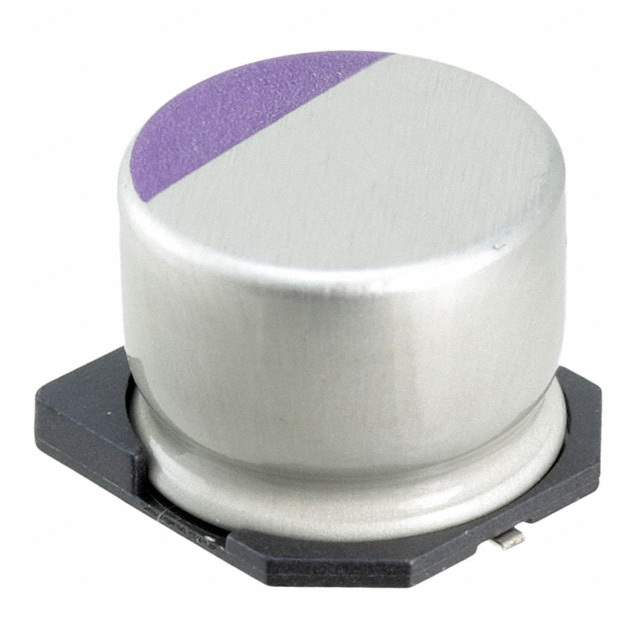

Same model may have multiple batches, images only for reference.

10SVP270M

Name: 10SVP270M
Brand: Panasonic
SKU: 538395
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	10SVP270M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	4. SPECIFICATIONS FOR EACH SERIES \| CAP ALUM POLY 270UF 20% 10V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel
Type	Polymer
Capacitance	270μF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime at Temp.	2000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current at Low Frequency	185mA at 120Hz
Ripple Current at High Frequency	3.7A at 100kHz
Parts Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1121083-10SVP270M
Manufacturer Homepage	www.ssdc-jp.com/eng/
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 10SVP270M CAD Model

Description

The 10SVP270M is a polymer capacitor manufactured by Panasonic Electronic Components.

Win Source Part Number: 1121083-10SVP270M
Packaging: Packaged in a reel.
Mounting Style: Its mounting style is SMD.
Applications: Its applications are general purpose.
Capacitance: The capacitance of this product is 270μF with a tolerance of ±20%.
Voltage Rating: Has a voltage rating of 10V.
ESR: ESR (Equivalent Series Resistance) of 25mOhm.
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm).
Category: This product is categorized as a capacitor.
Temperature Range: -55°C ~ 105°C.
Manufacturer's Homepage: www.ssdc-jp.com/eng/.
