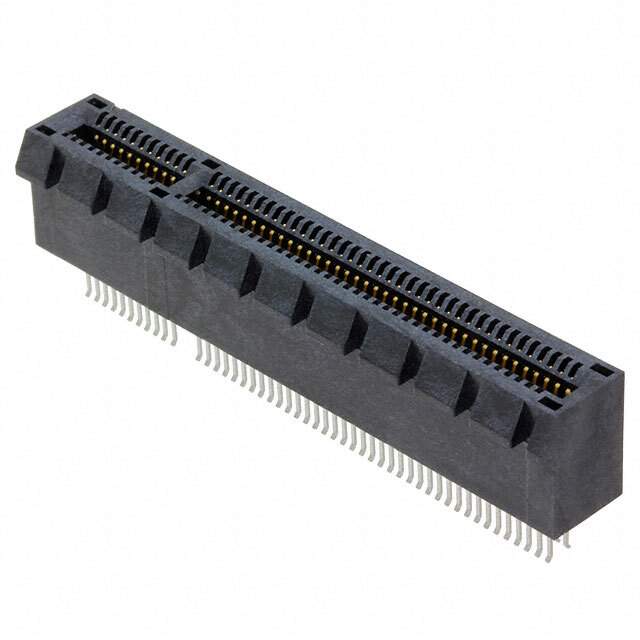

PCIE-098-02-F-D-EMS2 Real Image
Same model may have multiple batches, images only for reference.

PCIE-098-02-F-D-EMS2

Part No PCIE-098-02-F-D-EMS2
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description PCI EXPRESS EDGE MOUNT ASSY / Conn PCI Express Card Edge F 98 POS 1mm Solder ST Edge Mount Tube
Datasheet
PCIE-098-02-F-D-EMS2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series PCI Express (PCIe)
Packaging Tube
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Features Locking Ramp
Mounting Board Edge, Straddle Mount
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Color Black
Operating Temperature Range -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Read Out Dual
Win Source Part Number 791564-PCIE-098-02-F-D-EMS2
Popularity Medium
Supply and Demand Status Limited
Family Name PCIE
Introduction Date March 05, 2007
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PCIE-098-02-F-D-EMS2 CAD Model

Description

The Samtec Inc. 791564-PCIE-098-02-F-D-EMS2 is a female PCI Express (PCIe) connector. It has 98 positions with a pitch of 0.039" (1.00mm) and comes in a black color.

  • Positions: 98
  • Pitch: 0.039" (1.00mm)
  • Color: black
  • Locking Feature: ramp
  • Operating Temperature Range: -55°C to 125°C
  • Readout: dual
  • Mounting Type: board edge or straddle mount
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Series: PCIE
  • Introduction Date: March 05, 2007
