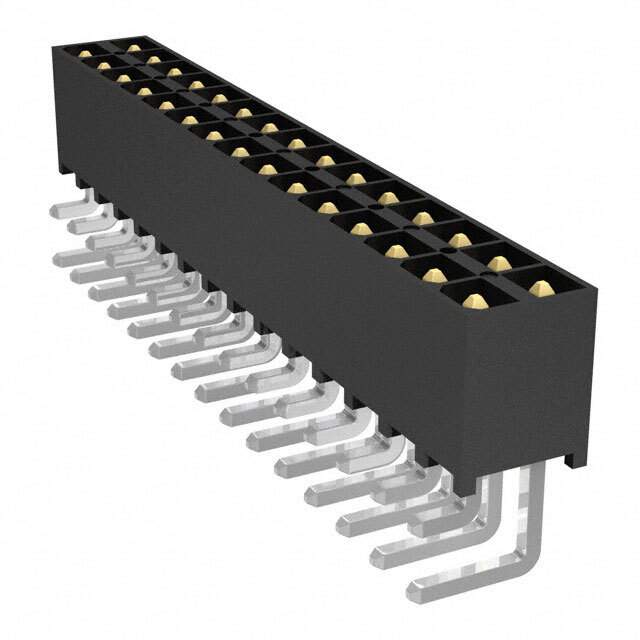

IPT1-115-01-S-D-RA

Name: IPT1-115-01-S-D-RA
Brand: Samtec Inc.
SKU: 1086228
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPT1-115-01-S-D-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 30POS 2.54MM / Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
Datasheet	IPT1-115-01-S-D-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Mini Mate® IPT1
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	30
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.155" (3.94mm)
Contact Length - Post	0.090" (2.29mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.3A per Contact
Voltage Rating	775VAC, 1095VDC
Base Product Number	IPT1-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM8107
Standard Package	14
Win Source Part Number	1086228-IPT1-115-01-S-D-RA
Ultra Librarian 3D Model	Ultra Librarian IPT1-115-01-S-D-RA CAD Model

Alternative Products

Description

The Samtec Inc. IPT1-115-01-S-D-RA is a rectangular connector header with male pins. IPT1-115-01-S-D-RA is a rectangular connector header with male pins. Samtec Inc. manufactures it.

Positions: 30
Fastening Type: Push-Pull
Shrouded: Shrouded - 4 Wall
Mounting Type: Through-Hole Right Angle
Current Rating: 2.3A per contact
Temperature Range: -55°C to 125°C
