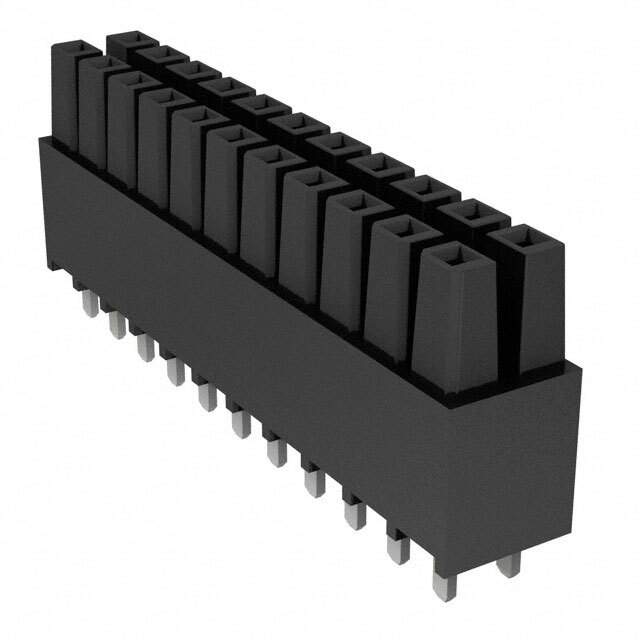

IPS1-111-01-S-D Real Image1 IPS1-111-01-S-D Real Image2
Same model may have multiple batches, images only for reference.
IPS1-111-01-S-D Real Image1 IPS1-111-01-S-D Real Image2
IPS1-111-01-S-D Real Image1 IPS1-111-01-S-D Real Image2
Same model may have multiple batches, images only for reference.

IPS1-111-01-S-D

Part No IPS1-111-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 22POS 0.1 GOLD PCB / 22 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
IPS1-111-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Mini Mate® IPS1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 22
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating -
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features -
Current Rating (Amps) -
Voltage Rating 775VAC, 1095VDC
Applications -
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post -
Base Product Number IPS1-111
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1382318-IPS1-111-01-S-D
Ultra Librarian 3D Model Ultra Librarian IPS1-111-01-S-D CAD Model

Description

The IPS1-111-01-S-D is a rectangular connector receptacle with female sockets.

  • Series: Mini Mate® IPS1
  • Positions: 22
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Standard Package: 1 piece
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Mounting Type: Through Hole
  • Voltage Rating: 775VAC, 1095VDC
  • Temperature Range: -55°C to 125°C
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Samtec Inc.
