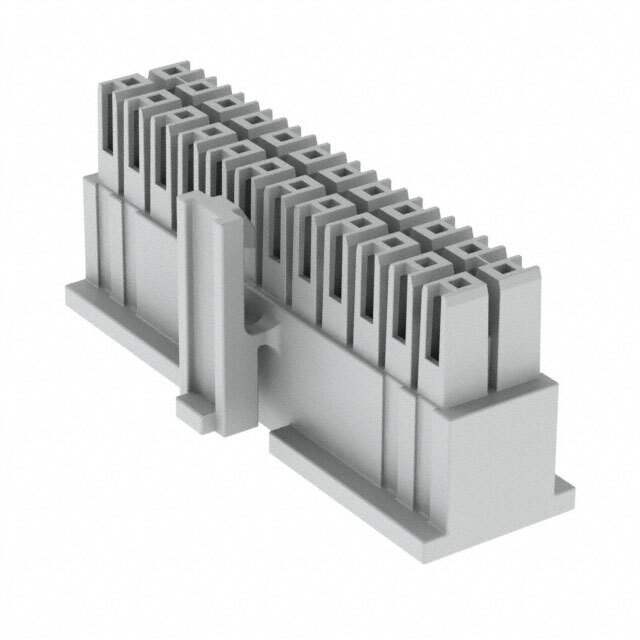

IPD1-12-D-K Samtec Inc.
Same model may have multiple batches, images only for reference.

IPD1-12-D-K

Part No IPD1-12-D-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT HSG 24POS 2.54MM
Datasheet
IPD1-12-D-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202489-IPD1-12-D-K
Manufacturer Samtec Inc.
Category Connectors, Interconnects- Rectangular Connectors -Rectangular Connector Housings
Series Mini Mate® IPD1
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 24
Pitch 0.100" (2.54mm)
Number of Rows 2
Ultra Librarian 3D Model Ultra Librarian IPD1-12-D-K CAD Model

Description

The Samtec Inc. Mini Mate® IPD1 series rectangular connector housing is designed for reliable and secure connections.

  • Positions: 24
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Packaging: Bulk
  • Series: Mini Mate® IPD1
  • Status: Active
