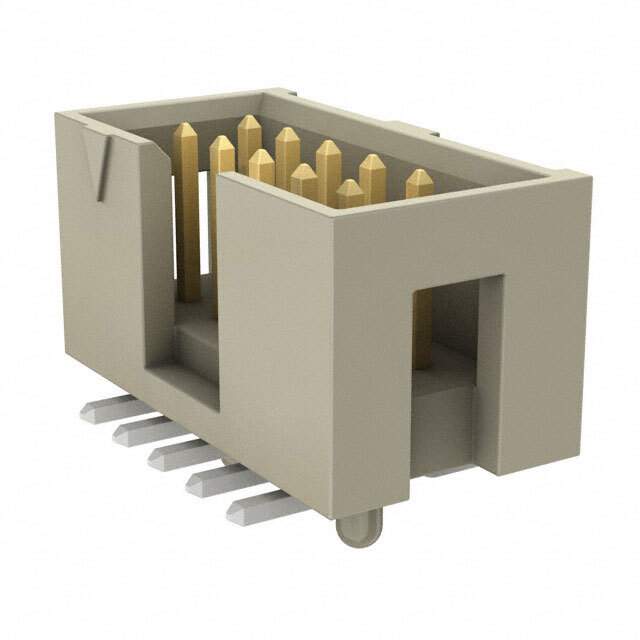

The HTST is a flex stack rectangular connector from Samtec Inc. with a Win Source Part Number of 1230069-HTST-105-01-L-DV-A.

• Win Source Part Number: 1230069-HTST-105-01-L-DV-A
• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 10
• All Positions Loaded: Yes
• Number of Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Phosphor Bronze
• Voltage Rating: -
• Current Rating per Contact: 3.4A
• Pitch - Mating: 0.100 inches (2.54mm)
• Contact Finish - Mating: Gold 10.0μin (0.25μm)
• Contact Finish - Post: Tin
• Shrouding: Shrouded-4 Wall
• Row Spacing - Mating: 0.100 inches (2.54mm)
• Contact Length - Mating: 0.250 inches (6.35mm)
• Insulation Height: 0.350 inches (8.89mm)
• Contact Shape: Square
• Operating Temperature: -55 degrees Celsius to 125 degrees Celsius
• ECCN: EAR99
• HTSUS Code: 8536.69.4040
