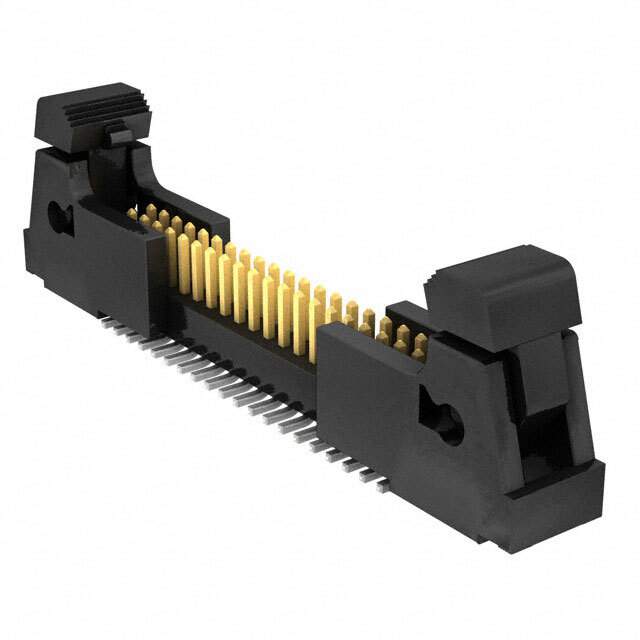

The Samtec Inc. 814371-FTSH-120-01-L-DV-EJ-P is a high-quality electronic component that comes with a tube packaging.

• Positions: 40
• Mounting Style: SMD
• Features: End Shrouds and Pick and Place
• Connector Type: Header, Cuttable
• Contact Type: Male Pin
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks
• Contact Material: Phosphor Bronze
• Voltage Rating: -
• Material Flammability Rating: UL94 V-0
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness-Mating: 10.0μin (0.25μm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.099" (2.51mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• Contact Length-Mating: 0.120" (3.05mm)
• Supply and Demand Status: Limited
• Manufacturer Pack Quantity: 1
• MSL Level: 1 (Unlimited)
• Current Rating (amps): 3.4A per contact
