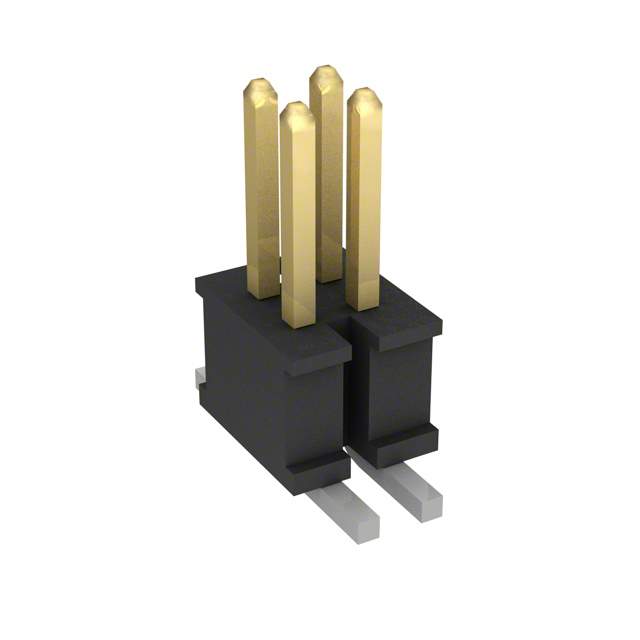

Same model may have multiple batches, images only for reference.

FTSH-102-01-L-DV-TR

Name: FTSH-102-01-L-DV-TR
Brand: Samtec Inc.
SKU: 985512
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-102-01-L-DV-TR
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 4POS 1.27MM / Connector Header Surface Mount 4 position 0.050" (1.27mm)
Datasheet	FTSH-102-01-L-DV-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tape & Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-102
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM13918TR,FTSH-102-01-L-DV-TR-ND,SAM13918DKR,FTSH-102-01-L-DV-FR,SAM13918CT
Standard Package	600
Win Source Part Number	985512-FTSH-102-01-L-DV-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-102-01-L-DV-TR CAD Model

Alternative Products

Description

The Samtec FTSH is a 4 position header connector with male pin contacts.

Pitch: 0.050" (1.27mm)
Contact Finish (Mating): Gold (10.0µin (0.25µm))
Contact Finish (Post): Tin
Mounting Type: SMD (SMT)
Row Spacing: 0.050" (1.27mm)
Current Rating: 3.4A per contact
Temperature Range: -55°C ~ 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
