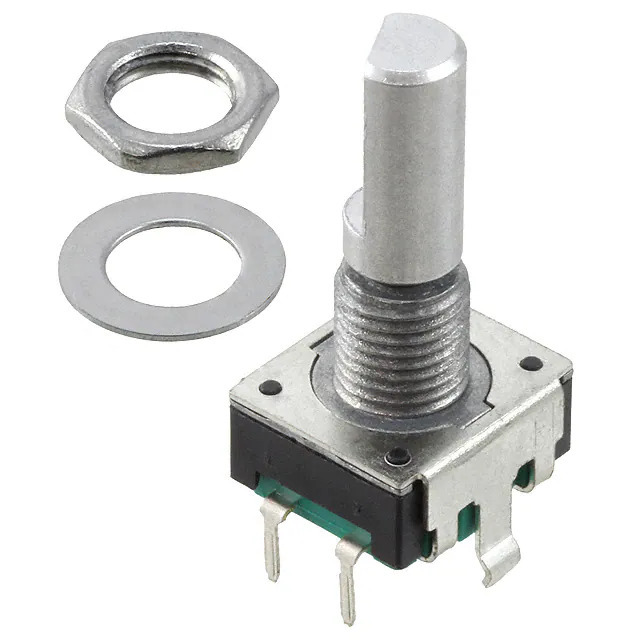

PEC11R-4020F-S0024 Bourns Inc.
Same model may have multiple batches, images only for reference.

PEC11R-4020F-S0024

Part No PEC11R-4020F-S0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR / Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
Datasheet
PEC11R-4020F-S0024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 1376098-PEC11R-4020F-S0024
HTSUS 8543.70.4500
ECCN EAR99
REACH Status REACH Unaffected
MSL Level Not Applicable
Base Product Number PEC11R
Rotational Life (Cycles Min) 30K
Termination Style PC Pin
Orientation Vertical
Mounting Type Panel, PCB Through Hole
Built in Switch Yes
Detent No
Actuator Type 6mm Dia Flatted End
Voltage - Supply -
Pulses per Revolution 24
Output Type Quadrature (Incremental)
Encoder Type Mechanical
Product Status Active
Package Tray
Series PEC11R
Mfr Bourns Inc.
Category Sensors, Transducers - Encoders
Ultra Librarian 3D Model Ultra Librarian PEC11R-4020F-S0024 CAD Model

Description

The Bourns Inc. PEC11R is a mechanical encoder with a quadrature (incremental) output type.

  • Output Type: Quadrature (incremental)
  • Voltage Supply: -
  • Mounting: Panel and PCB through-hole
  • Actuator Type: 6mm diameter flatted end
  • Termination Style: PC pin
  • Pulse Per Revolution: 24
  • Rotational Life: 30K cycles minimum
