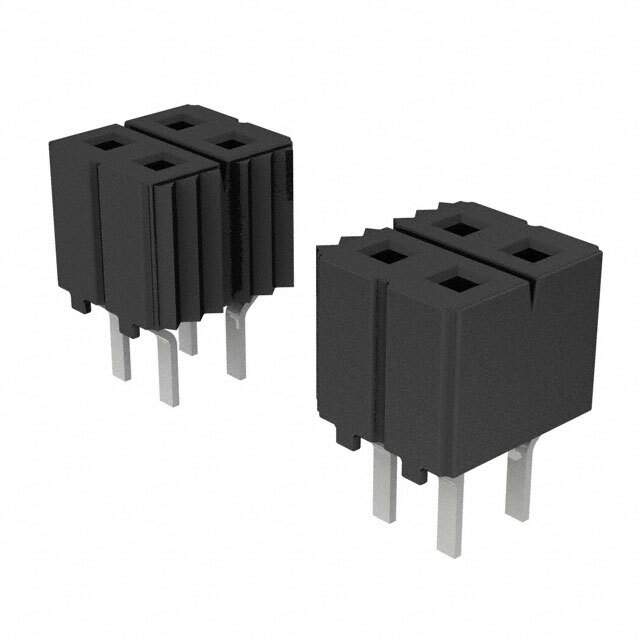

CES-118-01-S-D

Name: CES-118-01-S-D
Brand: Samtec Inc.
SKU: 760145
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CES-118-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 36POS .100" DUAL GOLD
Datasheet	CES-118-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	CES
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	36
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Contact Length - Post	0.128" (3.25mm)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT)
Contact Shape	Square
Contact Material	Phosphor Bronze
Win Source Part Number	760145-CES-118-01-S-D
Popularity	Medium
Supply and Demand Status	Limited
Family Name	CES
Introduction Date	February 12, 2008
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian CES-118-01-S-D CAD Model

Description

This 36-position receptacle connector from Samtec Inc. is part of the CES series.

Series: CES
Pitch: 0.100" (2.54mm)
Mounting Type: Through Hole
Temperature Range: -55°C to 125°C
Packaging: Tube
Insulation Material: Polybutylene Terephthalate (PBT)
Insulation Color: Black
Flammability Rating: UL94 V-0
Connection Type: Board-to-Board
Contact Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: 30μin (0.76μm)
