Same model may have multiple batches, images only for reference.

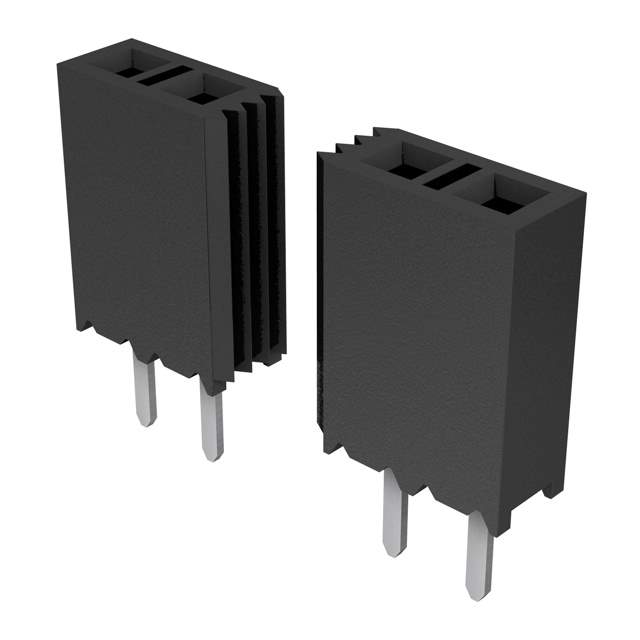

BCS-138-L-S-TE Real Image
Same model may have multiple batches, images only for reference.

BCS-138-L-S-TE

Part No BCS-138-L-S-TE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 38POS 0.1 GOLD PCB / 38 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
BCS-138-L-S-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Claw™ BCS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 38
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number BCS-138
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1011-38
Standard Package 1
Win Source Part Number 987617-BCS-138-L-S-TE
Ultra Librarian 3D Model Ultra Librarian BCS-138-L-S-TE CAD Model

Description

The Samtec Tiger Claw BCS-138-L-S-TE is a rectangular connector with 38 positions and a receptacle connector type.

  • Positions: 38
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Pitch Mating: 0.100" (2.54mm)
  • Mounting: Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Contact Shape: Square
  • Contact Length: 0.122" (3.10mm)
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 4.6A per contact
  • REACH Regulations: Unaffected
