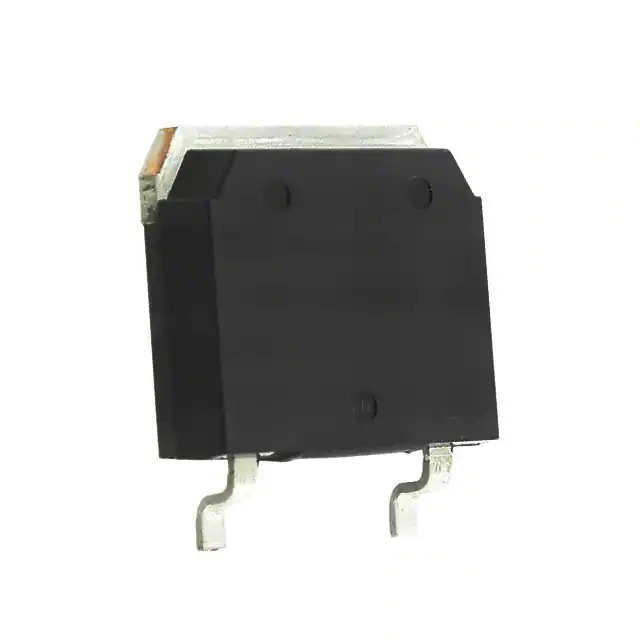

IXGT40N120B2D1

Name: IXGT40N120B2D1
Brand: IXYS
SKU: 1378710
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXGT40N120B2D1
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1200V 75A 380W TO268
Datasheet	IXGT40N120B2D1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	IXYS
Series	-
Package	Tube
Product Status	Active
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	75 A
Current - Collector Pulsed (Icm)	200 A
Vce(on) (Max) @ Vge, Ic	3.5V @ 15V, 40A
Power - Max	380 W
Switching Energy	4.5mJ (on), 3mJ (off)
Input Type	Standard
Gate Charge	138 nC
Td (on/off) @ 25°C	21ns/290ns
Test Condition	960V, 40A, 2Ohm, 15V
Reverse Recovery Time (trr)	100 ns
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
Base Product Number	IXGT40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1378710-IXGT40N120B2D1
Ultra Librarian 3D Model	Ultra Librarian IXGT40N120B2D1 CAD Model

Description

The IXYS IXGT40N120B2D1 is a single IGBT transistor with a voltage rating of 1200V and a current rating of 75A.

Voltage - Collector Emitter Breakdown (Max): 1200V
Current - Collector (Ic) (Max): 75A
Operating Temperature: -55°C ~ 150°C (TJ)
Power - Max: 380W
Input Type: Standard
IGBT Type: PT
Reverse Recovery Time (Trr): 100ns
Gate Charge: 138nC
Switching Energy: 4.5mJ (On), 3mJ (Off)
Package / Case: TO-268-3, D²Pak
