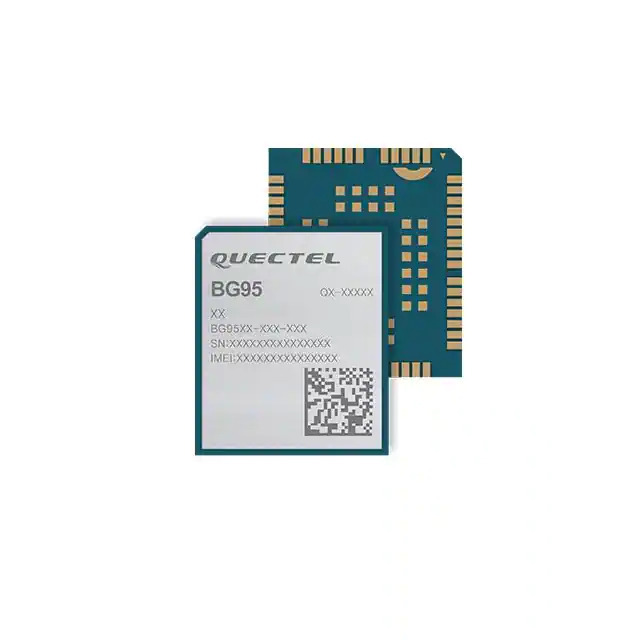

BG95M3LA-MINIPCIE Quectel
Same model may have multiple batches, images only for reference.

BG95M3LA-MINIPCIE

Part No BG95M3LA-MINIPCIE
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELLULAR SMD / Cellular, Navigation BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, LTE Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Series -
Package Tray
Product Status Active
RF Family/Standard Cellular, Navigation
Protocol BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, LTE
Modulation -
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 1.119Mbps
Power - Output 21dBm
Sensitivity -
Serial Interfaces GPIO, I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part -
Memory Size -
Voltage - Supply 3.3V ~ 4.3V
Current - Receiving 18.9mA
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number BG95
MSL Level Not Applicable
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 1355011-BG95M3LA-MINIPCIE
Ultra Librarian 3D Model Ultra Librarian BG95M3LA-MINIPCIE CAD Model

Description

The BG95M3LA-MINIPCIE is an active RF transceiver module from Quectel.

  • Frequency Range: 850MHz, 900MHz, 1.8GHz, and 1.9GHz
  • Package: Module
  • Mounting Type: Surface Mount
  • Voltage Supply: 3.3V to 4.3V
  • Interfaces: GPIO, I²C, PCM, UART, and USB
  • Data Rate: 1.119Mbps
  • Protocols: BeiDou, EGDE, Galileo, GLONASS, GPS, GNSS, GSM, and LTE
  • Power Output: 21dBm
  • Receiving Current Consumption: 18.9mA
  • Status: Active
  • Series: BG95
  • Package Type: Tray
