Same model may have multiple batches, images only for reference.

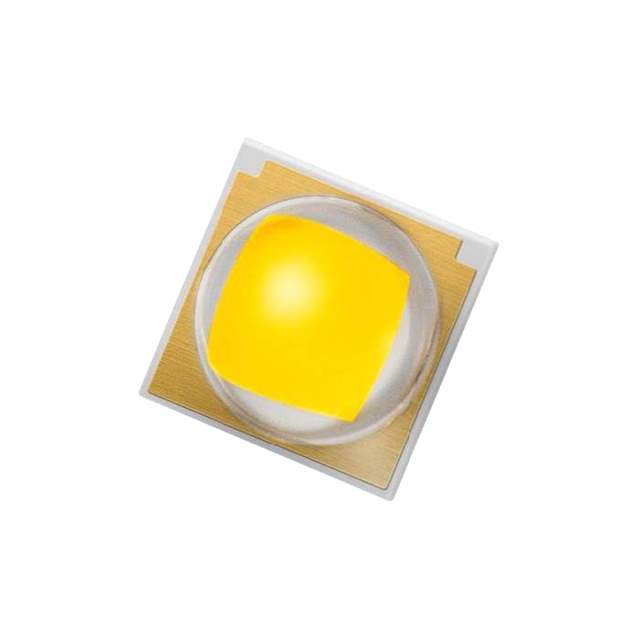

SCP9WTJ5HEL1WUGF6E Real Image
Same model may have multiple batches, images only for reference.

SCP9WTJ5HEL1WUGF6E

Part No SCP9WTJ5HEL1WUGF6E
Manufacturer Samsung
Catalog LED Lighting - White
Description LED / LED Lighting series White, Warm 2700K 3-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)
Datasheet
SCP9WTJ5HEL1WUGF6E Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH231B
Package Tape & Reel
Product Status Not For New Designs
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 200lm (170lm ~ 230lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 99 lm/W
CRI (Color Rendering Index) 90
Current - Max 2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1111 (2828 Metric)
Supplier Device Package SMD
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.019" (0.48mm)
Thermal Resistance of Package 2°C/W
Base Product Number SCP9WTJ5
Other Names SCP9WTJ5HEL1WUGF6E,1510-2316-6,1510-2316-1,1510-2316-2
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240180-SCP9WTJ5HEL1WUGF6E
Ultra Librarian 3D Model Ultra Librarian SCP9WTJ5HEL1WUGF6E CAD Model

Description

The Samsung Semiconductor SCP9WTJ5 LED is a high-quality LED lighting product that is designed to provide warm white light.

  • Type: surface mount device (SMD)
  • Viewing Angle: 120 degrees
  • Maximum Current Rating: 2A
  • Forward Voltage Rating: 2.9V
  • Package: 1111 (2828 Metric)
  • Thermal Resistance: 2 degrees Celsius per watt
  • Color Rendering Index (CRI): 90
  • Correlated Color Temperature (CCT): 2700K
  • Flux: 200lm @ 85 degrees Celsius @ a test current of 700mA
  • Lumens per Watt (lm/W): 99 @ test current
  • Series: LH231B series
