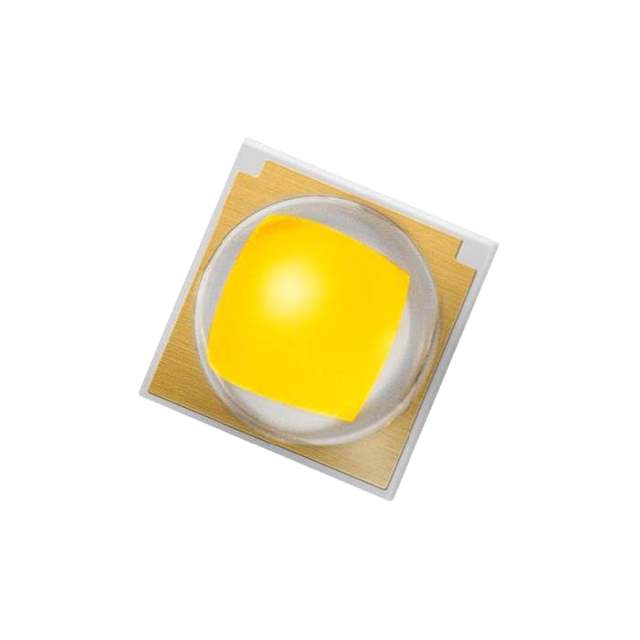

SCP8WTJ5HEL1WUKF6E Real Image
Same model may have multiple batches, images only for reference.

SCP8WTJ5HEL1WUKF6E

Part No SCP8WTJ5HEL1WUKF6E
Manufacturer Samsung
Catalog LED Lighting - White
Description LED / LED Lighting series White, Warm 2700K 3-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)
Datasheet
SCP8WTJ5HEL1WUKF6E Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH231B
Package Tape & Reel
Product Status Not For New Designs
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Flux @ 85°C, Current - Test 260lm (230lm ~ 290lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 2.9V
Lumens/Watt @ Current - Test 128 lm/W
CRI (Color Rendering Index) 80
Current - Max 2A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1111 (2828 Metric)
Supplier Device Package SMD
Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.019" (0.48mm)
Thermal Resistance of Package 2°C/W
Base Product Number SCP8WTJ5
Other Names 1510-2311-1,SCP8WTJ5HEL1WUKF6E,1510-2311-6,1510-2311-2
Standard Package 2,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240179-SCP8WTJ5HEL1WUKF6E
Ultra Librarian 3D Model Ultra Librarian SCP8WTJ5HEL1WUKF6E CAD Model

Description

The Samsung Semiconductor LH231B is an optoelectronics LED lighting product with a white and warm color series.

  • Package: tape and reel package
  • Height: 0.019" (0.48mm) when seated
  • Standard Package: 2,000
  • Mounting: SMD type
  • Maximum Current: 2A
  • Viewing Angle: 120°
  • Typical Forward Voltage (Vf): 2.9V
  • CCT: 2700K 3-Step MacAdam Ellipse
  • CRI: 80
  • Thermal Resistance of the Package: 2°C/W
  • ECCN: EAR99
  • HTSUS Code: 8541.41.0000
  • Status: not for new designs
