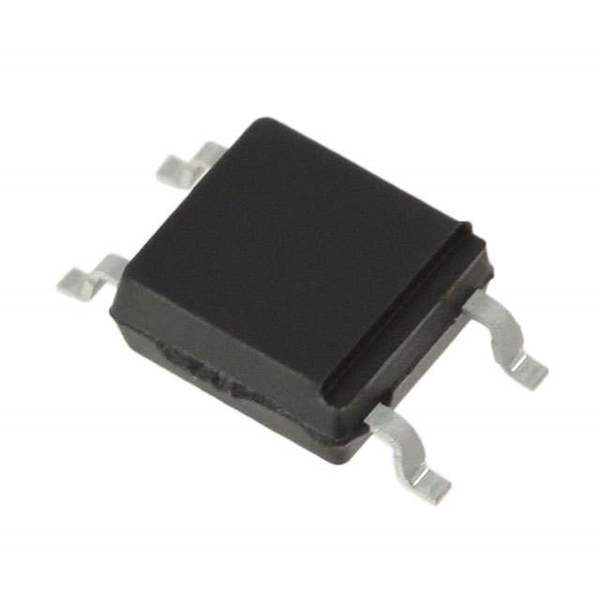

PS2761B-1-V-F3-A CEL
Same model may have multiple batches, images only for reference.

PS2761B-1-V-F3-A

Part No PS2761B-1-V-F3-A
Manufacturer CEL
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SMD
Datasheet
PS2761B-1-V-F3-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer CEL
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 70V
Channel Output Current 40mA
Forward Voltage 1.1V
Continuous forward current- Max 25mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SOP
Win Source Part Number 281123-PS2761B-1-V-F3-A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PS2761B-1-V-F3-A CAD Model

Description

The CEL PS2761B-1-V-F3-A is an isolator that is designed for use in a range of different applications.

  • Case: 4-SOP
  • Mounting: SMD (SMT)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Isolation Voltage: 3750Vrms
  • Maximum Output Voltage: 70V
  • Switching Turn-On and Turn-Off Time: Not specified
