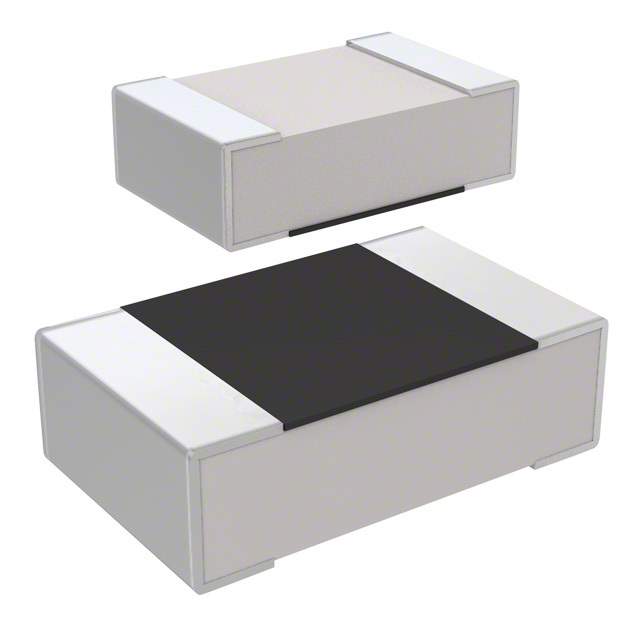

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 82 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5219-1,1276-5219-2,1276-5219-6
Standard Package 5,000
Win Source Part Number 1107159-RC2012F820CS
Ultra Librarian 3D Model Ultra Librarian RC2012F820CS CAD Model

Description

The Samsung Electro-Mechanics RC2012F820CS is a chip resistor that is designed for use in electronic devices.

  • Series: RC
  • Feature: Moisture Resistant
  • Package: Tape and reel
  • Tolerance: ±1 percent
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W
  • Resistance: 82 ohms
  • RoHS Compliant: Yes
  • REACH: Unaffected
