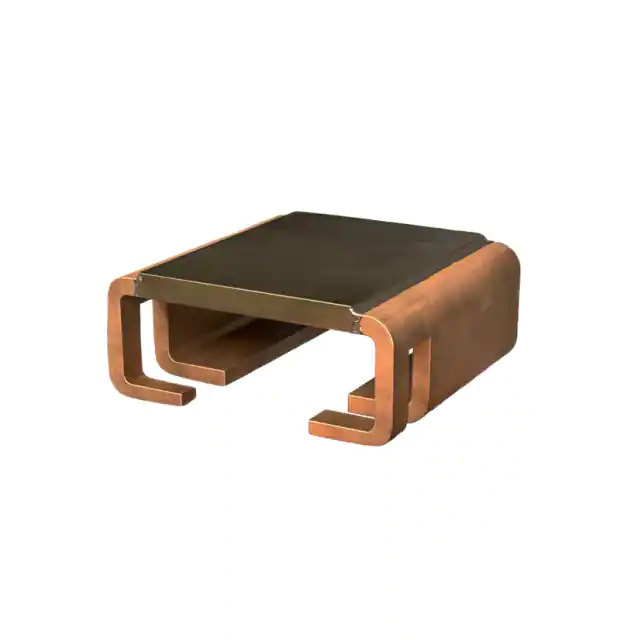

Same model may have multiple batches, images only for reference.
BVE-M-R0005-1.0 Isabellen
Same model may have multiple batches, images only for reference.

BVE-M-R0005-1.0

Part No BVE-M-R0005-1.0
Manufacturer Isabellen
Catalog Chip Resistor - Surface Mount
Description RES 0.0005 OHM 1% 8W 5930
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Isabellenhuette USA
Series BVE
Package Tape & Reel
Product Status Active
Resistance 0.5 mOhms
Tolerance ±1%
Power (Watts) 8W
Composition -
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient 75ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 5930
Ratings AEC-Q200
Size / Dimension 0.591" L x 0.305" W (15.00mm x 7.75mm)
Height - Seated (Max) 0.050" (1.27mm)
Number of Terminations 2
Failure Rate -
Base Product Number BVE-M
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1375401-BVE-M-R0005-1.0
Ultra Librarian 3D Model Ultra Librarian BVE-M-R0005-1.0 CAD Model

Description

The 1375401-BVE-M-R0005-1.0 is a chip resistor designed for surface mount applications.

  • Manufacturer: Isabellenhuette USA
  • Series: BVE
  • Resistance Value: 0.5 mOhms
  • Tolerance: ±1%
  • Power: 8W
  • Temperature Coefficient: 75ppm/°C
  • Size: 0.591" L x 0.305" W (15.00mm x 7.75mm)
  • Maximum Seated Height: 0.050" (1.27mm)
  • AEC-Q200: Rated
  • REACH: Unaffected
  • Applications: Current sensing in automotive electronics
