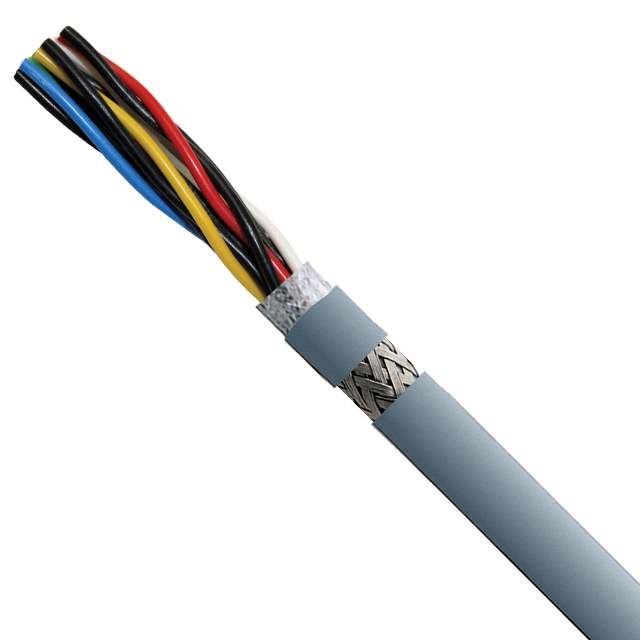

7772405 Real Image
Same model may have multiple batches, images only for reference.

7772405

Part No 7772405
Manufacturer SAB North America
Catalog Multiple Conductor Cables
Description MULT-PAIR 10COND 24AWG BLK 1=1FT / 10 (5 Pair Twisted) Conductor Multi-Pair Cable Black 24 AWG Braid
Datasheet
7772405 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Multiple Conductor Cables
Mfr SAB North America
Series SD 960 CY TP
Package Spool
Cable Type Multi-Pair
Number of Conductors 10 (5 Pair Twisted)
Wire Gauge 24 AWG
Conductor Strand 32/38
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.339" (8.61mm)
Shield Type Braid
Jacket Color Black
Features Flame Retardant, UV Resistant
Voltage 300 V
Temperature Range - Operating 80°C
Usage Industrial
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.49.9000
Win Source Part Number 1346912-7772405
Ultra Librarian 3D Model Ultra Librarian 7772405 CAD Model

Description

The SD 960 CY TP is a multi-pair cable from SAB North America.

  • Conductors: 10 (5 pair twisted)
  • Wire Gauge: 24 AWG
  • Voltage: 300V
  • Shield Material: Copper and tinned materials
  • Shield Type: Braid
  • MSL: Not Applicable
  • HTSUS: 8544.49.9000
  • Flame Retardant: Yes
  • UV Resistant: Yes
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Jacket Insulation Diameter: 0.339" (8.61mm)
  • Jacket Insulation Thickness: -
