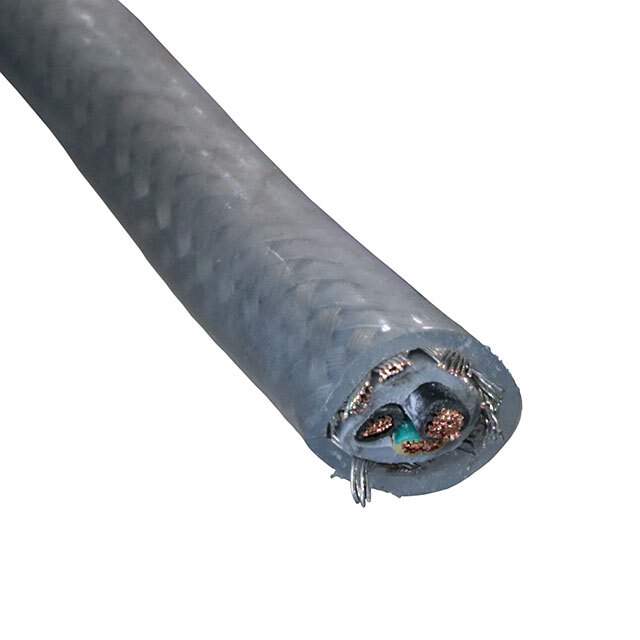

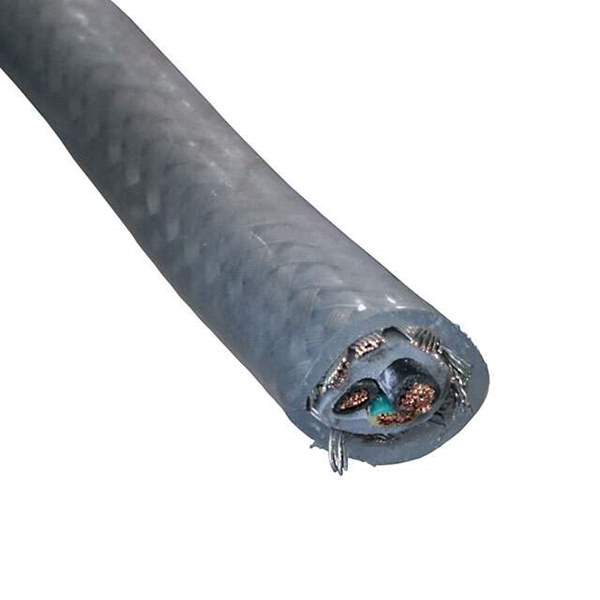

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Series Pro-Met®
Package Spool
Cable Type Multi-Conductor
Number of Conductors 3
Wire Gauge 15 AWG
Conductor Strand 28/0.0098"
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.365" (9.27mm)
Shield Type Braid
Length 328.1' (100.0m)
Jacket Color Clear
Features Chemical Resistant, Oil Resistant, UV Resistant
Voltage 300 V
Temperature Range - Operating -40°C ~ 80°C
Usage Industrial
Jacket (Insulation) Thickness 0.0374" (0.950mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Copper, Tinned
Shield Coverage 80%
Base Product Number 470315CY
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 470315CYCL033
Standard Package 1
Win Source Part Number 1022046-470315CY CL033
Ultra Librarian 3D Model Ultra Librarian 470315CY CL033 CAD Model

Description

The Pro-Met® multi-conductor cable is an excellent choice for industrial applications due to its chemical, oil, and UV resistance.

  • Voltage Rating: 300V
  • Conductors: 3
  • Wire Gauge: 15 AWG
  • Conductor Material: Bare copper
  • Conductor Strand: 28/0.0098"
  • Jacket Insulation Material: Poly-Vinyl Chloride (PVC)
  • Diameter: 0.365" (9.27mm)
  • Thickness: 0.0374" (0.950mm)
  • Shield: Tinned copper
  • Shield Coverage: 80%
  • Spool Length: 328.1' (100.0m)
  • Temperature Range: -40°C ~ 80°C
