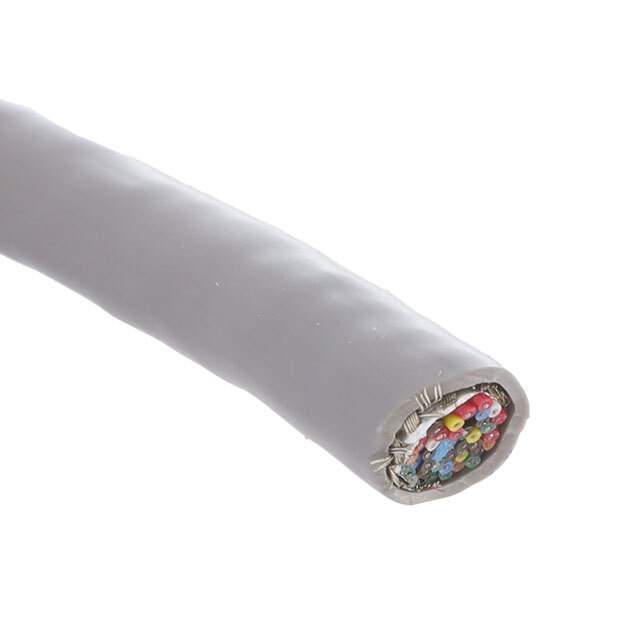

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Pair
Number of Conductors 36 (18 Pair Twisted)
Wire Gauge 22 AWG
Conductor Strand 7/28
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.500" (12.70mm)
Shield Type Foil, Braid
Length 100.0' (30.5m)
Jacket Color Slate
Ratings UL Style 2464
Features Drain Wire
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum; Copper, Tinned
Shield Coverage 100%, 65%
Base Product Number 6383
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 6383SL005,6383 SL005-ND
Standard Package 1
Win Source Part Number 1132379-6383 SL005
Ultra Librarian 3D Model Ultra Librarian 6383 SL005 CAD Model

Description

The Alpha Wire 1132379-6383 SL005 is a multi-pair cable with 36 conductors that are 22 AWG in size.

  • Conductors: 36
  • Wire Gauge: 22 AWG
  • Shielding: Aluminum and Copper, Tinned
  • Shield Coverage: 100% and 65%
  • Voltage Rating: 300V
  • Rated: UL Style 2464
  • Temperature Range: -20°C ~ 80°C
  • Length: 100ft
  • Suitable for: Cables and wires applications
