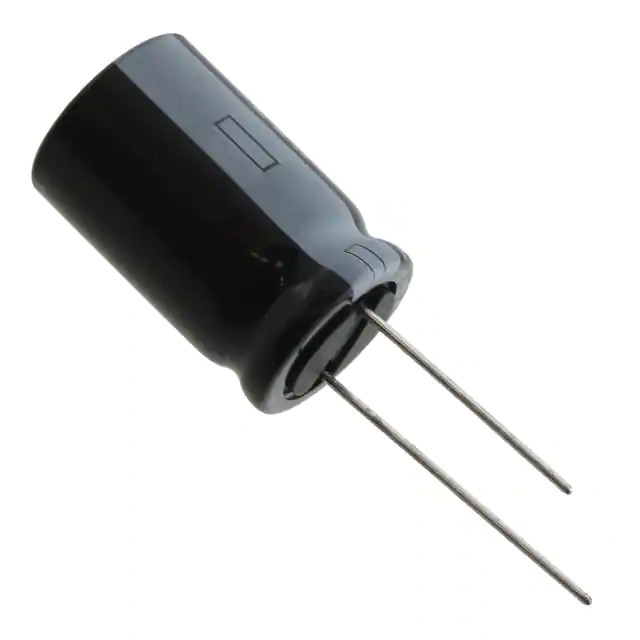

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Bulk
Product Status Active
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.216 A @ 120 Hz
Impedance 44 mOhms
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358274-80ZLH560MEFC16X25
Ultra Librarian 3D Model Ultra Librarian 80ZLH560MEFC16X25 CAD Model

Description

The ZLH series aluminum electrolytic capacitor is a high-quality component, manufactured by Rubycon.

  • Capacitance: 560 μF
  • Voltage Rating: 80 V
  • Package: Radial, Can
  • Tolerance: ±20%
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
  • Ripple Current (Low Frequency): 1.216 A @ 120 Hz
  • Polarization: Polarized
  • Lead Spacing: 7.50mm
