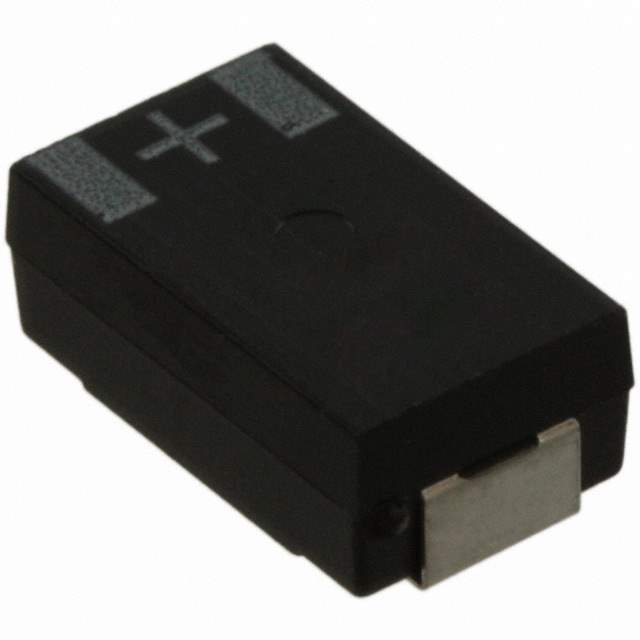

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymer
Capacitance 100μF
Tolerance ±20%
Voltage Rating 6.3V
ESR 9 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Ripple Current - High Frequency 3.5A @ 100kHz
Height - Seated (Max) 0.106" (2.70mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 120750-6SW100M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6SW100M CAD Model

Description

6SW100M

The 6SW100M is an innovative electronic component that provides seamless integration into a plethora of designs, noted for its dependability and user-friendly attributes.

  • Applications:
    • Wearable technology
    • Mobile devices
    • Renewable energy solutions
  • Features and Benefits:
    • Excellent power regulation
    • Heat-resistant for extended use
    • Compact and lightweight
  • Additional Details:

    This component is suitable for modern applications where space and efficiency are paramount considerations.
