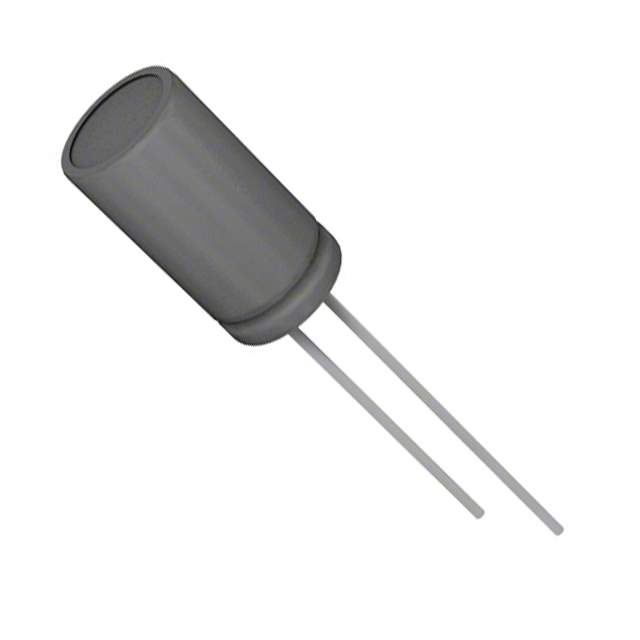

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 152.9 mA @ 120 Hz
Ripple Current @ High Frequency 278 mA @ 100 kHz
Impedance 350 mOhms
Lead Spacing 0.098" (2.50mm)
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 63YXJ47M63X11,1189-1502
Standard Package 2,000
Win Source Part Number 958987-63YXJ47M6.3X11
Ultra Librarian 3D Model Ultra Librarian 63YXJ47M6.3X11 CAD Model

Description

The 958987-63YXJ47M6.3X11 is an aluminum electrolytic capacitor from Rubycon's YXJ series.

  • Series: YXJ
  • Mounting: Through-Hole
  • Capacitance: 47 μF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Impedance: 350 mOhms
  • ESR: - (not specified)
  • Ripple Current @ Low Frequency: 152.9 mA @ 120 Hz
  • Ripple Current @ High Frequency: 278 mA @ 100 kHz
  • Height: 0.492 inches (12.50mm)
  • Package: Radial, Can
  • Application: General-Purpose
  • Lifetime: 7000 hours @ 105°C
  • Polarity: Polarized
  • Lead Spacing: 0.098 inches (2.50mm)
  • Packaging: Bulk
  • Standard Package: 2000 units
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
