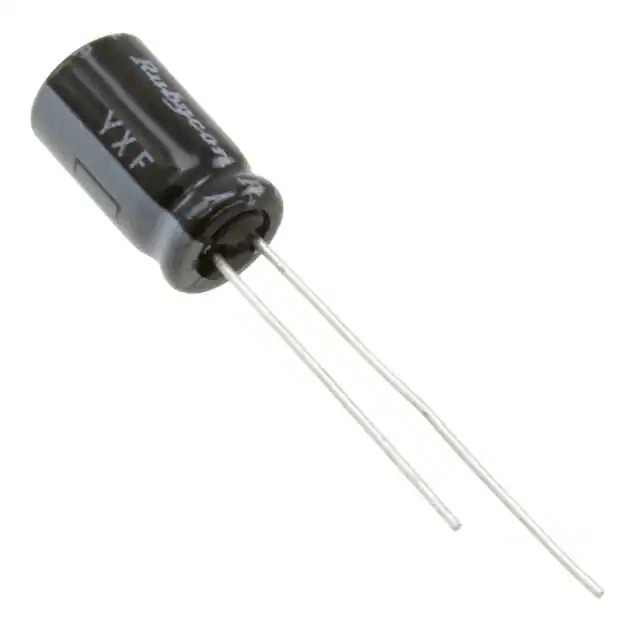

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 77 mA @ 120 Hz
Ripple Current @ High Frequency 140 mA @ 100 kHz
Impedance 1.3 Ohms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357952-63YXF22MEFC6.3X11
Ultra Librarian 3D Model Ultra Librarian 63YXF22MEFC6.3X11 CAD Model

Description

The Rubycon 1357952-63YXF22MEFC6.3X11 capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 63 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Package: Radial, Can
  • Size: 0.248" diameter and a height of 0.492"
  • Lead Spacing: 0.098"
  • Mounting: Through Hole
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current (Low Frequency): 77 mA @ 120 Hz
  • Ripple Current (High Frequency): 140 mA @ 100 kHz
