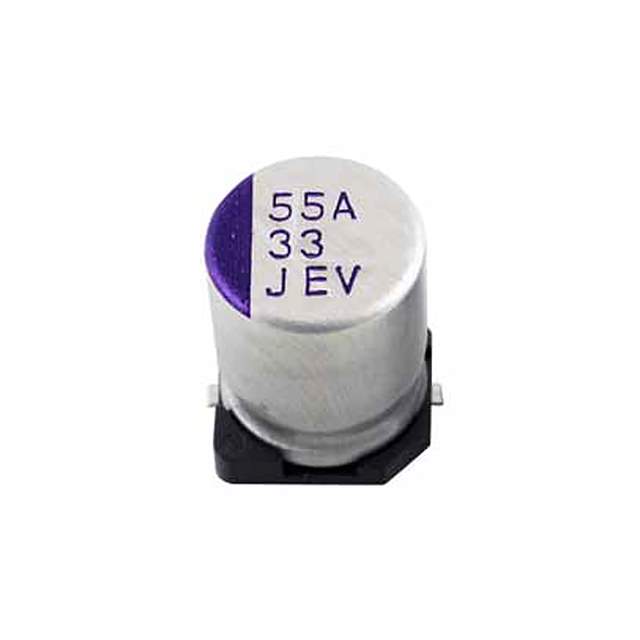

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Rubycon
Series PFV
Package Tape & Reel
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 1.1 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338412-63PFV33M8X10.5
Ultra Librarian 3D Model Ultra Librarian 63PFV33M8X10.5 CAD Model

Description

This aluminum-polymer hybrid capacitor from Rubycon is a high-quality component that is perfect for automotive applications.

  • Capacitance: 33 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Mounting Style: Surface Mount
  • Package: Radial Can - SMD
  • Maximum Seated Height: 0.413" (10.50mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • ESR: 40mOhm
  • Ripple Current (Low Frequency): 55 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.1 A @ 100 kHz
  • Lifetime @ Temperature: 4000 hours @ 125°C
  • AEC-Q200 Rated: Yes
  • Packaging: Tape & Reel
