Same model may have multiple batches, images only for reference.

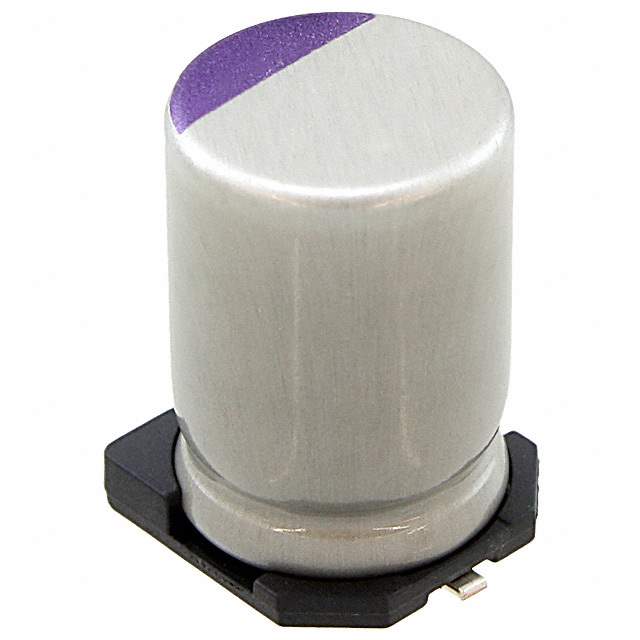

16SVP180M Real Image
Same model may have multiple batches, images only for reference.

16SVP180M

Part No 16SVP180M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 16V SMD  /  180 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 182 mA @ 120 Hz
Ripple Current @ High Frequency 3.64 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16460CT,P16460DKR,P16460TR
Standard Package 400
Win Source Part Number 1123395-16SVP180M
Ultra Librarian 3D Model Ultra Librarian 16SVP180M CAD Model

Description

The Panasonic Electronic Components OS-CON™ SVP series capacitor is a high-quality polymer capacitor designed for use in a variety of applications.

  • Capacitance: 180 µF
  • Voltage Rating: 16 V
  • Application: General Purpose
  • Tolerance: ±20%
  • ESR: 20mOhm
  • Lifetime @ 105°C: 2000 hours
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Operating Temperature: -55°C to 105°C
