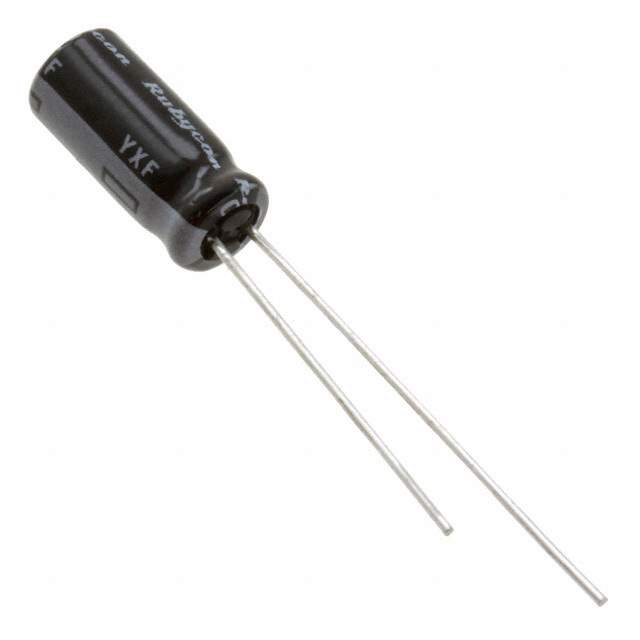

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 82.5 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.098" (2.50mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 50YXF22MEFCT15X11-ND,1189-3766-1,1189-3766-3
Standard Package 2,000
Win Source Part Number 1330505-50YXF22MEFCT15X11
Ultra Librarian 3D Model Ultra Librarian 50YXF22MEFCT15X11 CAD Model

Description

The Rubycon 1330505-50YXF22MEFCT15X11 is an aluminum electrolytic capacitor designed for general purpose applications.

  • Application: General Purpose
  • Capacitance: 22 μF
  • Voltage Rating: 50 V
  • Manufacturer: Rubycon
  • Packaging: Cut Tape (CT) and Tape & Box (TB)
  • Impedance: 900 mOhms
  • Ripple Current @ Low Frequency: 82.5 mA @ 120 Hz
  • Ripple Current @ High Frequency: 150 mA @ 100 kHz
  • Lifetime: 5000 Hrs @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • Case/Package: Radial, Can
  • ROHS3 Compliant: Yes
