Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TRV
Package Tape & Reel
Capacitance 1500 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 990 mA @ 120 Hz
Ripple Current @ High Frequency 1.65 A @ 100 kHz
Impedance 72 mOhms
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337495-50TRV1500M18X21.5
Ultra Librarian 3D Model Ultra Librarian 50TRV1500M18X21.5 CAD Model

Description

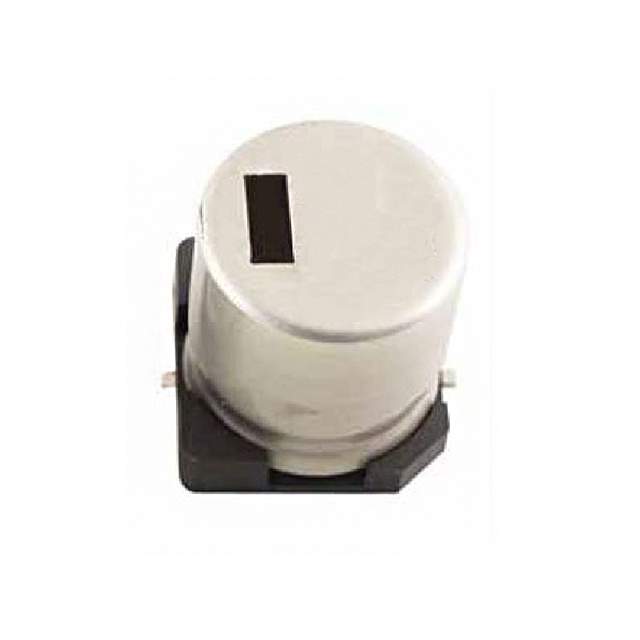

The Rubycon TRV series capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Manufacturer: Rubycon
  • Series: TRV
  • Capacitance: 1500 µF
  • Voltage Rating: 50 V
  • Application: General Purpose
  • Package: Radial, Can-SMD
  • Diameter: 0.709 inches (18.00mm)
  • Height: 0.866 inches (22.00mm)
  • Tolerance: ±20%
  • Lifetime @ Temperature: 10000 hours @ 105°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.748 inches x 0.748 inches (19.00mm x 19.00mm)
  • Impedance: 72 mOhms
  • ESR (Equivalent Series Resistance): -
  • Ripple Current (120 Hz): 990 mA
  • Ripple Current (100 kHz): 1.65 A
